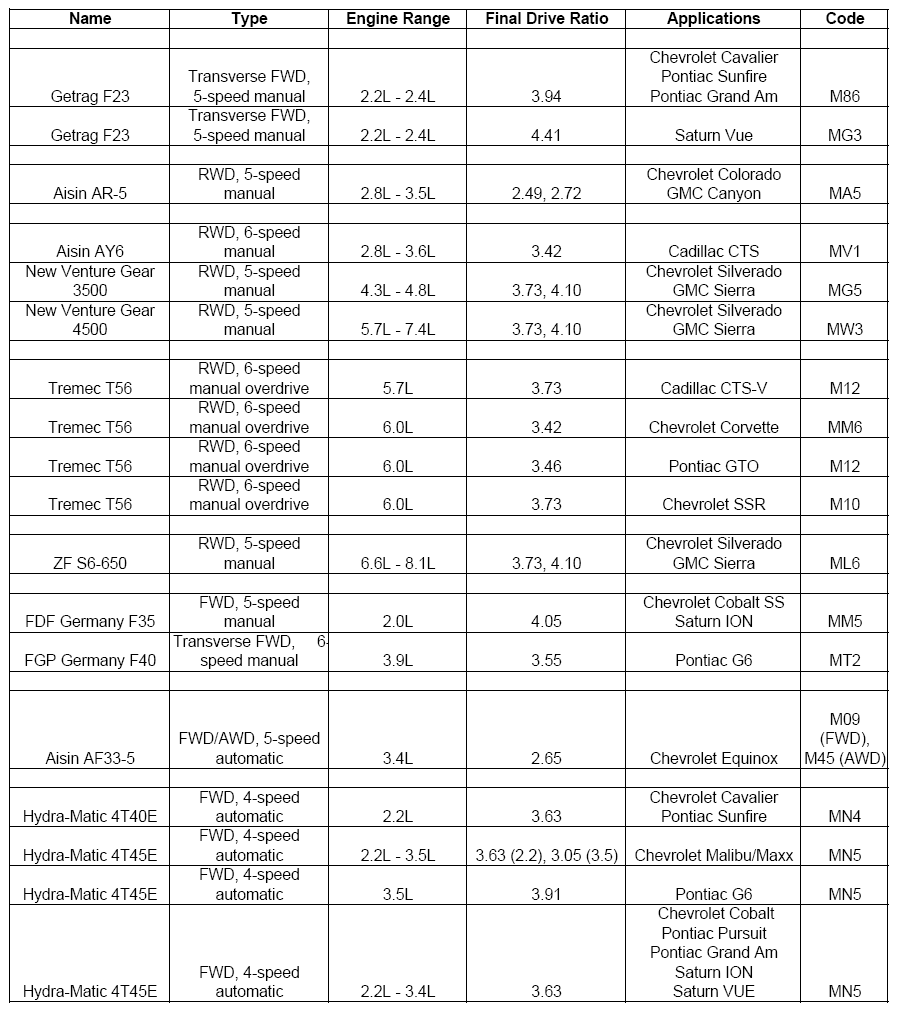

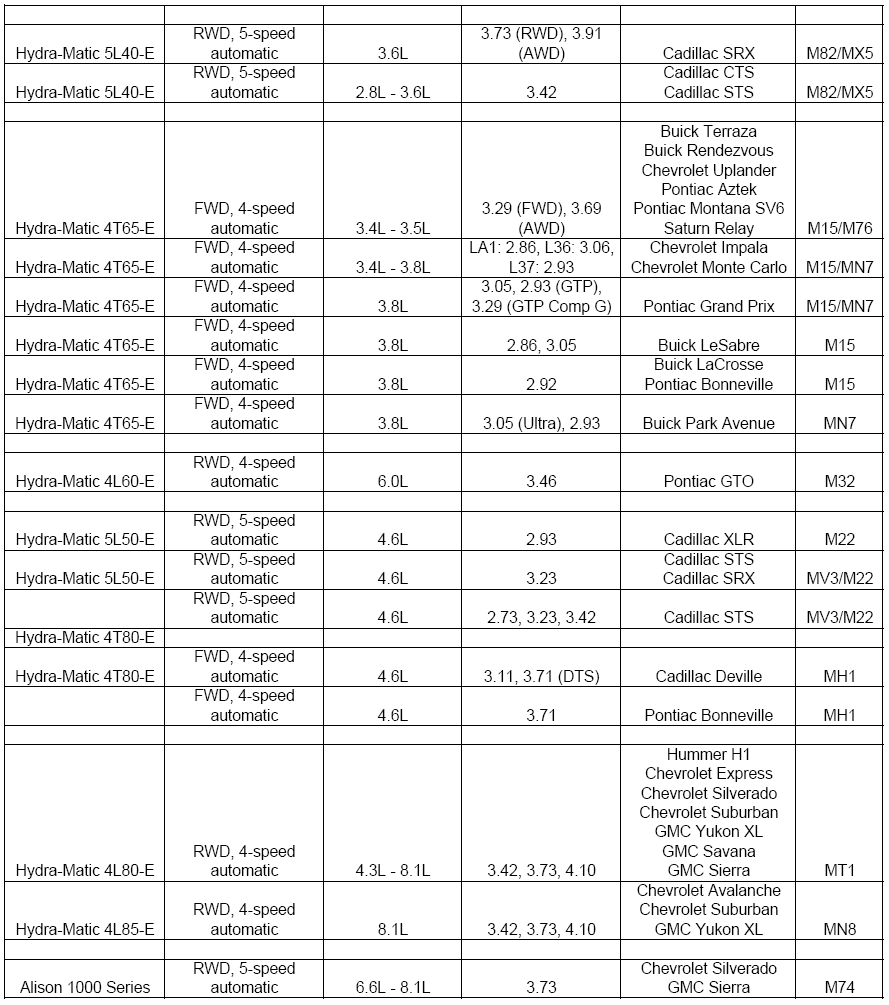

2006 F40 (MT2)
Type: transverse front wheel drive, six
speed manual transaxle
Engine range: 3.9L
Maximum engine torque: 245 lb-ft ( 333 Nm )
Maximum gearbox torque: 295 lb-ft ( 400 Nm )
Gear ratios: MT2
                                                                                               First:            3.77
                                                                                               Second:        2.04
                                                                                               Third:            1.32
                                                                                                Fourth:        0.95
                                                                                                Fifth:            0.76
                                                                                                Sixth:            0.62
Reverse: 3.54
Final Drive                                                                                                 3.55
Maximum validated gross vehicle weight: 3527 lb ( 1600 kg )
Case material: aluminum
Center distance: 197 mm
Fluid type: Castrol BOT 0063
Transmission weight: 56 kg ( 123.5 lb )
Fluid capacity (approximate): 3.1L / 3.27 qt ( dry )
Power take off: no
Applications: Pontiac G6



2006 F35 (MU3)
Type: transverse front wheel drive, five
speed manual transaxle ( optional
with limited slip differential )
Engine range: 2.0L I-4 supercharged
Maximum engine torque: 200 lb-ft ( 271 Nm )
Maximum gearbox torque: 258 lb-ft ( 350 Nm )
Gear ratios:                                                                                     MU3
                                                                                            First:            3.38
                                                                                            Second:       1.76
                                                                                            Third:        1.18
                                                                                            Fourth:     0.89
                                                                                            Fifth:         0.7
Reverse: 3.17
                                                                                                    Final Drive 4.05
Maximum validated gross vehicle weight: 5071 lb ( 2300 kg )
Case material: aluminum
Center distance: 76.5 mm
Fluid type: Castrol BOT 0063
Transmission weight: 45 kg ( 99 lb )
Fluid capacity (approximate): 1.7L / 2.0 qt ( dry )
Power take off: no
Applications: Chevrolet Cobalt SS
Saturn Ion Red Line



2006 Getrag F23 (M86/MG3)
Type:
Engine range:
Maximum engine torque:
Maximum gearbox torque:
                                                                Gear ratios:     M86                 MG3
                                                                            First:     3.58                     3.58
                                                                        Second:     2.02                     2.02
                                                                            Third:     1.35                         1.35
                                                                            Fourth:     0.98                         0.98
                                                                            Fifth:         0.69                         0.81
Reverse: 3.31 3.31
Case material:
Center distance:
Fluid type:
Transmission weight:
Power take off:
Chevrolet HHR (M86)
Chevrolet Cobalt (M86)
Pontiac Pursuit (M86)
Saturn Ion (M86)
transverse front wheel drive, five-speed
manual transaxle
2.2L - 2.4L DOHC (M86/MG3)
155 lb-ft (210 Nm)
170 lb-ft (230 Nm)
Maximum validated gross vehicle weight: M86: 4094 lb (1857 kg)
MG3: 4475 lb (2030 kg)
aluminum
75mm
DEXRON III
46.3 kg (102 lb)
Fluid capacity (approximate): M86: 1.7L / 1.8 qt (dry)
MG3: 1.8L / 1.9 qt (dry)
no
Applications: Chevrolet Cavalier (M86)
Pontiac Grand Am (M86)
Saturn VUE (MG3)

Fiero > MG2

  Type Final 1 2 3 4 5
1985/88 4cyl 5 speed* MT2 3.35 3.73 2.04 1.45 1.03 0.74
      37 68 96 134 180+
1986/88 V6 5 speed** MG2 3.61 3.50 2.05 1.38 0.94 0.72
6200 RPM     37 63 93 136 180+
06 Cavalier Grand AM Saturn VUE M86/F23 3.94 3.58 2.02 1.35 0.98 0.69
6200 RPM redline     33 58 87 120 170
  M86/F23 (1994) 3.84 3.58 2.02 1.35 .98 .69
      34 60 89 123 180+
Chevrolet Cobalt SS
Saturn Ion Red Line		 MU3/F35 4.05 3.38 1.76 1.18 0.89 0.70
6200 RPM     34 65 97 128 160
Saturn VUE only MG3/F23 4.41 3.58 2.02 1.35 0.98 0.81

  TYPE Final 1 2 3 4 5 6
G6 MT2 3.55 3.77 2.04 1.32 0.95 0.76 0.62
6200 RPM     34 64 99 138 171 180+
Dodge   3.55 3.54 2.12 1.36 1.03 .72
Dodge Neon   3.94 3.54 2.12 1.36 1.03 0.81
Dodge Neon   3.94 3.58 2.02 1.35 0.98 .72



GETRAG F23 (M86/MG3) 5-SPEED MANUAL CAR TRANSMISSION
2006 model year summary
• There are no changes for the 2006 model year
Low maintenance
The Getrag F23 use DEXRON III for 2006 and is certified for the life of the transaxle. In addition, the clutch is actuated hydraulically, and so wear is automatically compensated and no clutch adjustments are necessary.
Overview
The Getrag F23 is a three-axis conventional transverse 5-speed manual transaxle with fully synchronized reverse gear. It features compact packaging, broad low-torque applications, and reliable operation.
The F23 has two gearsets on each of three parallel shafts – the input shaft, the output shaft, and the intermediate shaft. This three-shaft (also called three-axis) design results in a very short axial length for better packaging. There are three separate shift fork shafts, which hold three shift forks to activate the synchronizer rings for the two gearsets on each of the three gear shafts. The shift forks are activated by a cable system. The clutch release bearing is operated by a concentric slave cylinder that surrounds the input shaft in the clutch housing. A concentric slave cylinder allows more linear clutch feel than an external lever-actuated clutch and release bearing. The input shaft carries the 3rd and 4th gear synchronizer, the intermediate shaft carries the 1st and 2nd gear synchronizer, and the output shaft carries the 5th and reverse gear synchronizer. The aluminum case contains a conventional final drive gearset.
There are sintered bronze double-cone blocker rings on the synchronizers for 1st and 2nd gears, while 3rd and 4th gears use carbon fiber blocker rings, and 5th and Reverse gears use molybdenum on their synchronizers. Carbon and molybdenum are extremely durable friction surfaces that remain stable even under extreme heat.
Reverse gear is synchronized, which is a design advantage. That means the vehicle does not have to be completely stationary in order for reverse gear to be selected by the driver. On-going improvements include refinements such as a new synchronizer sleeve for first and second gear that improves cold-weather engagement of the gears.
Several refinements differentiate the applications of the F23: The concentric slave cylinder, which hydraulically actuates the clutch pressure plate, was redesigned to match the engine configuration in the Chevy Cobalt. The fluid reservoir for the clutch circuit is changed for the Saturn VUE to the same design used by the Saturn ION. This design uses a reservoir where brake and clutch fluid share the same reservoir body, although partitions inside the reservoir keep the fluid for each function separate.
The specifications for the transaxle originated with Opel, which uses the transaxle in Europe. The primary differences between the M86 and MG3 are the gearset ratios (see specifications page) and the clutch housing (also called bell housing) machining. The case of the M86 and MG3 are cast identically, but mounting bosses are drilled for different engine mounting studs.
Getrag builds the F23 transaxle in Bari, Italy.
