Here at FastFieros I try to stay on top of all aspects of upgrades and accessories for your Fiero.
Added 11-09-06 97-98 3800sc low mount support ( see below )
PAGE updated 03-12-07
_____________________________________________
3800 SuperCharged or Natural Aspirated OBDII wiring harness - I completely custom build the OBDII harness with your Fiero harness to make as clean installation as you can find in some show cars.
$950 (includes shipping ) - you provide harness from 3800 and Fiero. FREE OBDII programming with harness wiring. PASSKEY deleted with my wiring package. EGR, EVAP, and other items available for deleting.
WHAT you get for your $950 = $785 harness work, $125 PCM programming, $40 shipping. I only ship Priority mail at minimum.
Wiring harness work itself is ($785)... You are not going to find anyone else that custom builds your harness to your CUSTOM application.
If you are low mount with Fiero Alt ... Done
If you are low mount with 3800 Alt ... Done
If you are delete EGR, EVAP, Purge, Boost Solenoid ... Done
The harness is built to your exact application and is 100% plug and play. You do not add any connectors.
The harness includes the following features:
Fuel Pump test point ( this is a bypass that helps to decide if the relay is functioning or not. If bad, you can use this to get the car running so you can get to a parts supplier.
Electric cooling fan test point. ( this is a bypass that helps to decided if the PCM is malfunctioning or improper Fan on/off programming exist )
100% functional Fiero gauges. If all your Fiero gauges worked before you started the swap, they all will work again
IAT spoof so you do not have to drill a hole in your CAI aluminum tube. Also this is located in the harness so that you can get to it and add the happy knob or ICCU.
Custom location for MAP. This once again cleans up the install for that show car look.
AC is fully functional with 3800 compressor or Fiero compressor. Once again, I build to your exact application.
All diagnostic trouble lights fully function. ( temp light, oil light, amp light )
Performance shift located so you can add a on/off switch if you want to. I provide a ground terminal already installed. ( no just bare wire here )
PCM location with my harness can be in 2 different areas. I set it up so the PCM is in the stock Fiero location. Please ask if interested in alternate location.
Multiple ground points. I make sure all ground connections are redundant. It is so important that computer systems and sensors have proper grounds.
Battery relocation in place. When you remote mount your battery, there is a little red wire off the terminal for the body harness connection. I fix this problem in the harness.
PCM reset without removing the terminal from your battery. ( you know, remove the NEGATIVE terminal connection for 1 minute reset deal ) no need.
In 50 plus harness built... not one single harness failed to start a car.
85 Fieros have decklid release in the engine harness. This is added back in.
O2 sensor is custom located for your exact application
OBDII diagnostic connector is installed and BOLTS right back in the stock ALDL Fiero location in center console.
The harness is phone sliced type connections, soldered connection, and hi temp heat shrinked.
The harness is taped upon finished on the wires themselves.
The harness is FULLY tested with a GM certified Tech 2
The harness is then covered in NEW convoluted black tubing in the exact correct size for the wire loom.
The harness is then wrapped 100% in vinyl black tape. The tape is now ENDLESS. You will not find a loose end at any connection/connector in the engine bay.
The harness layout is completely thought out for HEAT management and protection of the critical sensor signals.
The harness can be installed and removed from the car without removing a single device. ( engine in the car, alt, starter, fuel rails ).. this allows for even better cleaning.
The reason the convoluted tubing is completely wrapped, is the harness becomes very water resistant, and very easy to clean as a daily driver car, or show car.
Anything you want me to add to the harness so your engine bay is 100% show car clean, I can do it. ( Boost vacuum line, WBo2 wires, etc....)
This is a picture of a completed harness on a 4T65eHD application
Now to the PCM programming.
I am one of the fore front PCM programmers for Fieros. Other companies get me to do their PCM programming.
My Version 1 for automatic has pushed a completely stock internal 3800sc to 12.78 with back to back run.
My Version 2 PCM programming for manual is the only offered to Fieros, Sandrails, and other applications.
I personally own GM TIS2000, GM PCM development software tools, HPTuners, EFILive, TunerCat, Powrtuner, AutoTap, AVT VPW hardware...
That is what you get for your $950 .... All of the above... its alot of work.. and alot of detail.
$1200 on 2004 OBDII wiring with Electronic Throttle Control (ETC) and automatic 2004 4T65eHD transmission. You cannot use ETC with a manual transmission at this time to my knowledge. The VSS and 2004 PCM must be used with ETC which talks to Throttle Actuator Control (TAC) module.
FastFieros now offers OBDII programming for your Fiero (see this page > http://www.fastfieros.com/obdii_programming.htm )
FastFieros can now program the following PCM's for your Hybrid installation...
Grand Prix 97-05 3800NA or 3800SC
( 06 - 07 not supported at this time )
Grand Prix 05-06 5.3L Displacement on Demand ( LS4 or LH6 )
Camaro LS1 / LS6 98-02
Silverado Trucks LQ4 / LQ9 / L33 / LM7
EcoTec 2.0L SuperCharged LSJ 04-06
Sand Rails are now offered in programming for your manual or automatic applications.
Reasons to use OBDII PCM's with your Fiero today:
Today's wiring system
Future upgrades with PCM's
FastFieros now offer OBDII custom programming
Use today's diagnostic software like AutoTap, EFILive, and others
Use today's Snap On scanners
Programming available via GM Tech 2 to change some PCM's to GTP PCM's
So many reasons to use OBDII vs OBDI 95 and below ECM's, just call me.
Reasons you might want to use OBDI ECM with your 3800SC project
ECM is cheaper than most OBDII PCM's
Wiring is a little easier to deal with
YOU can hack the ECM yourself with TunerCat (cost about $600 in hardware and software)
Thats all I can think of at this time
I keep 3800SC wiring harness in stock.
I keep SOME Fiero wiring harness in stock.
2006 New addition... Transmission Control Units
I have hooked up with http://www.PowerTrainControlSolutions.com as a dealer and support person for the TCU they offer. This TCU is to control the 4T65eHD in an hybrid install were engine management can be ANYTHING. This standalone controller is just awesome in features, and ease of use in programming. I will of course sell you a unit that is plug and play with programming already setup for your application.
These units programming with wiring harness are $850
That breaks down to $700 for the TCU, $150 for the wiring harness. FREE programming and firmware upgrade when purchased from FastFieros for your application.
Here are the features of this product:
Product Description:
The Powertrain Control Solutions, LLC. Universal Automatic Transmission
Controller is a fully programmable transmission control system. Through a
friendly PC Windows interface users are able to program transmission settings
based on speed, engine load, engine speed and other parameters. This powerful
unit allows users to control every type of electronic automatic transmission
from Ford, Nissan, GM, Toyota, Chrysler and many other manufacturers (ex. Ford
AOD-E, GM 4L60E). Automatic transmissions have been mass produced only in
electronic versions for many years without a satisfactory aftermarket solution.
Finally, Powertrain Control Solutions, LLC. offers a product to control these
readily available transmissions both in new vehicles and custom built vehicles.
Our unique approach to engineering in this field allows this unit to control all
types of electronic automatic transmissions at a low cost. Therefore we are able
to produce a unit to control more transmissions and with greater capability than
our competition.
Product Specifications:
· Upshift/Downshift button capability
· Selectable shifting modes (ex. Power, towing, economy)
· Compact Dimensions (5.9in x 4.15in x 1.75in)
· Durable 63pin weather sealed circular plastic connector built into case
· All components specified for automotive conditions (125 degrees C with fuel,
grease, and oil resistance).
· 6 PWM Driver outputs (Selectable 12v or ground output) (3amp)
· 6 Digital Driver outputs (Selectable 12v or ground output) (3amp)
· 4 frequency inputs (Engine Speed, TC Speed, Driveshaft speed, additional
speed)
· RS 232, CAN (2.0b) communications
· 16 Digital Inputs
· 6 Analog Inputs
· 1 frequency output (speedometer control)
· Complete wiring harnesses available for common applications
· Custom wiring harnesses available for any application
· Easy to use windows software interface
· Data logging capability
· Dyno Mode
· TRUE manual Mode
· TAP shift Mode
· Test Mode

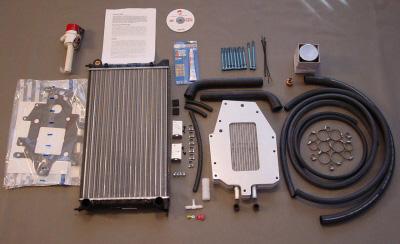

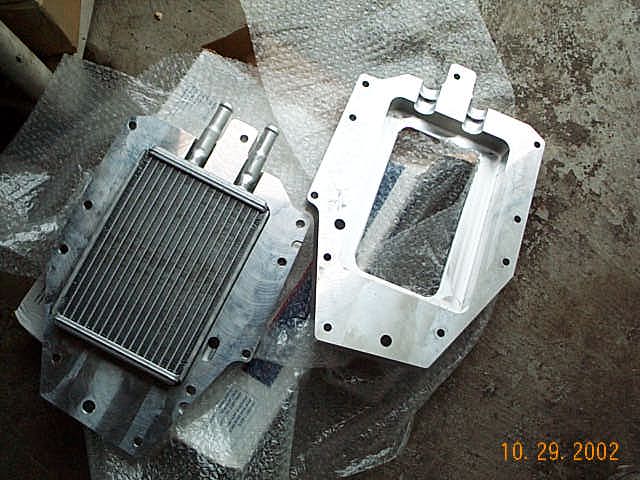

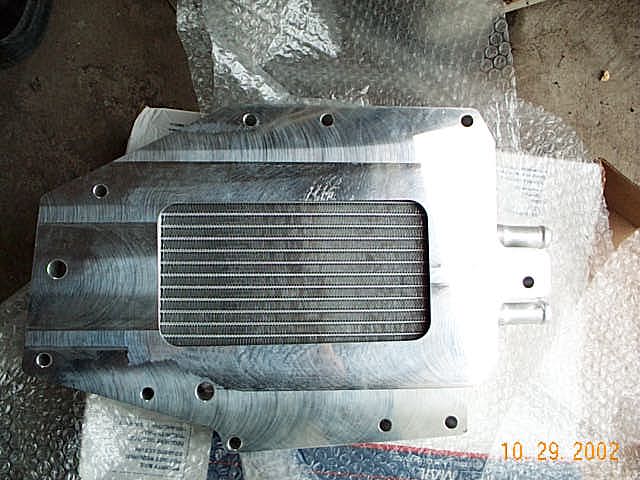

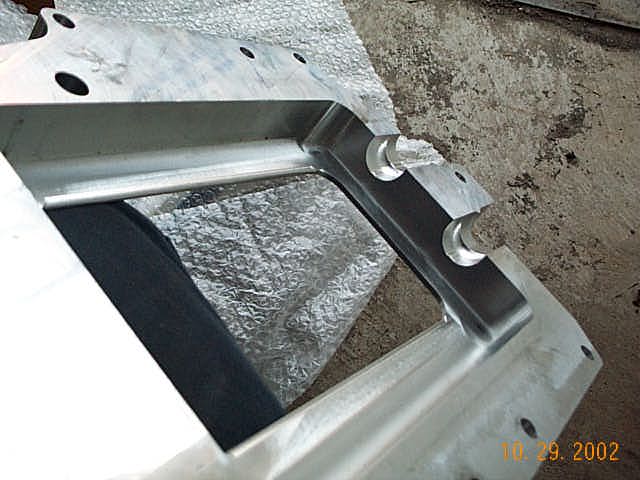

The ZZPerformance Intercooler is by far the most power increase bolt on part for the 3800SC engines. Claims are 30-40HP increases. Prices start at $1000 for stage 2 applications. Below are pics of the InterCooler. I keep 2 in stock at all times or you purchased directly at www.zzperformance.com
The SuperCharger Pulley is the quickest value "bolt on" for the 3800SC. The stock size is 3.8 and most people looking for 10 -15 HP will go with the 3.4 pulley. This is a press-on pulley and must be done with the proper tool. I keep 3.4 pulley's in stock.

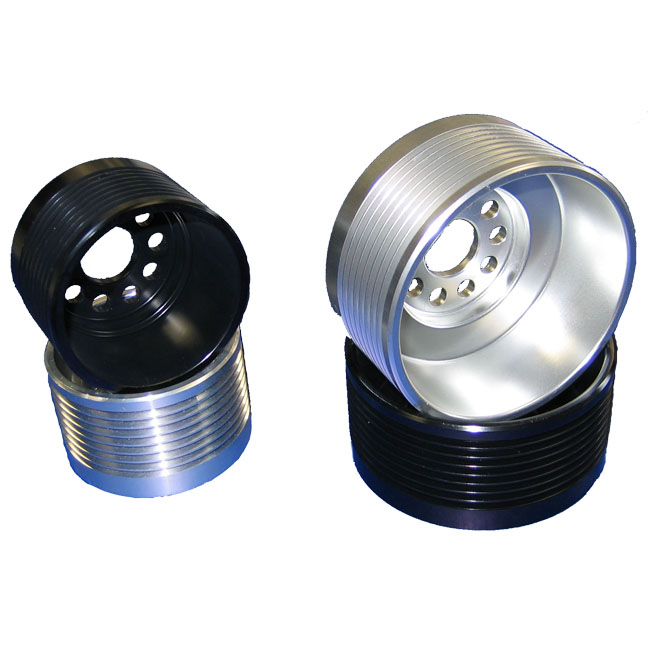

Pictured is the even better ZZP MPS pulley system.
The PCM (Power Control Module). So powerful these days. Tuned from the factory for emissions and economy, there is alot left in one of these. For a price however.
When the 3800SC became a strong contender in the racing industry, the Grand Prix Store came out with the reprogrammed PCM. Boosting 15-20 HP and firmer shift points. Prices started at $400 and have dropped to $260 on these.
REPROGRAMMED PCM's history and version's
DHP - DHP to slow in shipping PCM's and Powrtuners....
Intense - Intense uses a product developed by HP Tuners. FastFiero's uses one of these programmers also. See website for details. http://www.hptuners.com/products.html
CYA Racing - CYA sells only limited custom tune PCM's. Not sure what software and hardware package they use. Not sure they are even still around.
1997 is unique and only for 97. last 4 digits of the service
number are 7797
1998 reprogrammed will work up to the 2003 (I have not tried
this, but was assured it is true) *Update* 05-15-04 I have tried this now. The
98 code will work with the 99-03 engines. Not recommended however still.
See ablove for PCM I can program as of 5-10-06
Cold Air Induction $200 for 3800SC
This is for the 2.8 engine to 3.4 in 2.50 inch size
This is for the 3800SC engine in 2.75 inch size
Now available in 3 inch mandrel bend aluminum 90 degree bends. Its nice.
TOG Headers (The Other Guy) $950 or price reduced with turnkey install
Nickel plated
big 3" outlet
tuned properly for the 3800SC
fits FWD but with work, will fit the Fiero
TOG is out of business. However, I purchased these units and refurbish them to new condition
Limited availability, and usually only to my in house installs

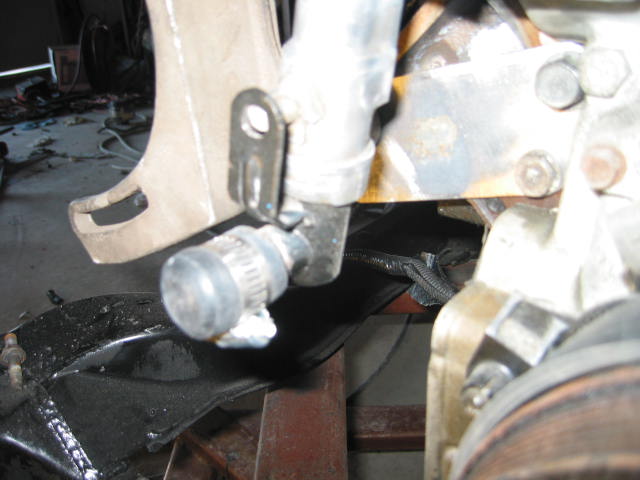

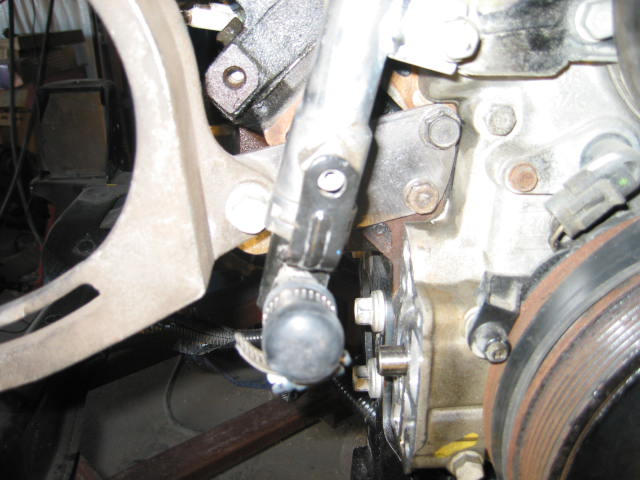

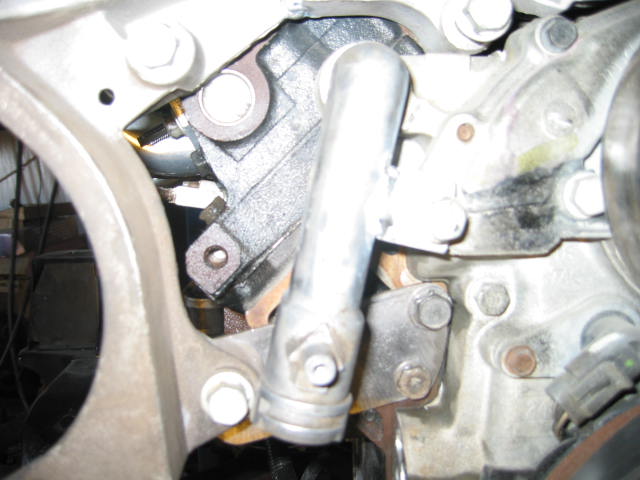

Alternator low mounting with water inlet and outlet solutions for the heater core
This is a combo Dogbone and low mount Alt solution

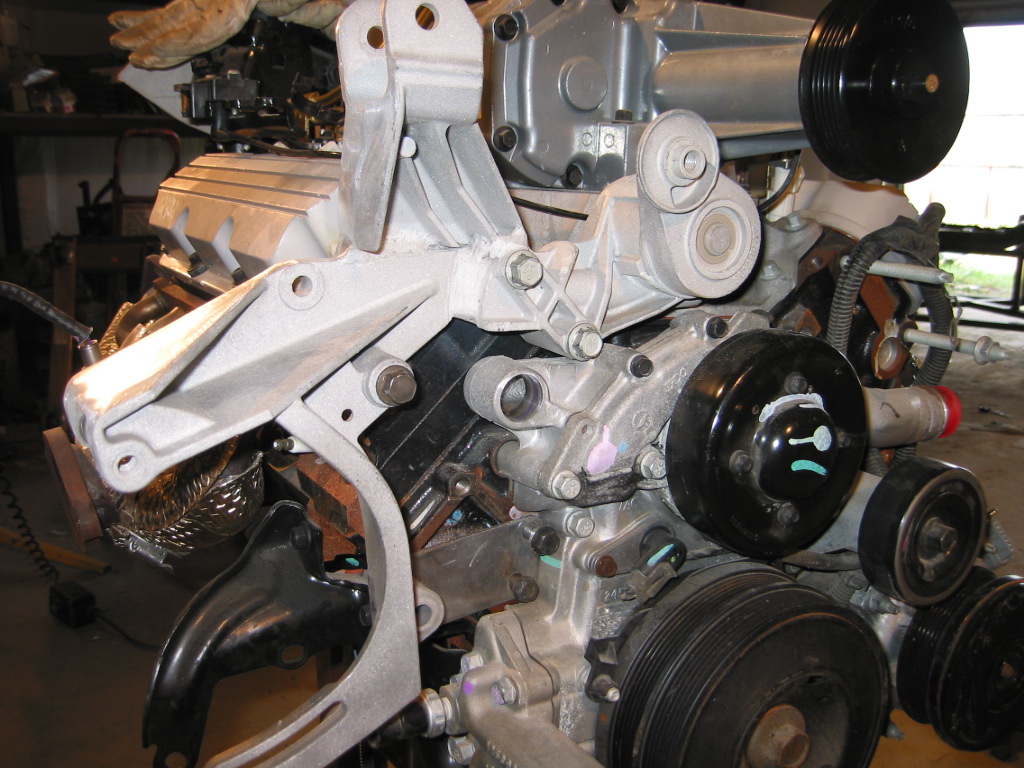

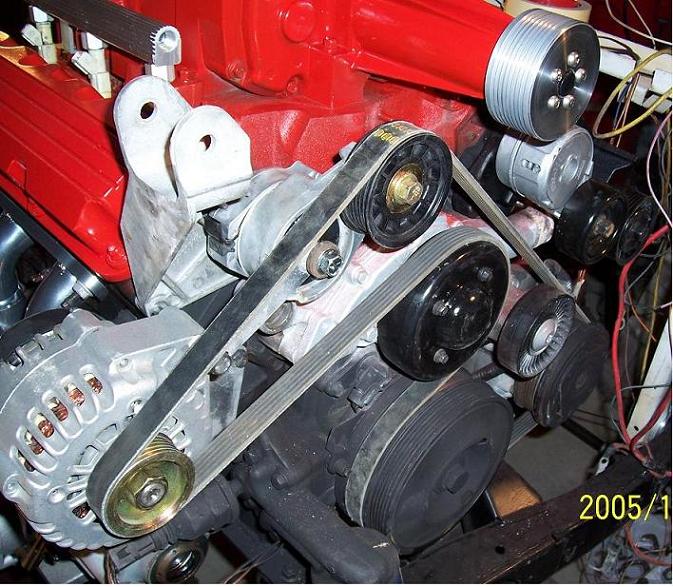

GEN II Low mount Alt solution. This is finally the 99-04
design of the alt, water inlet/outlet from the Series II engines.

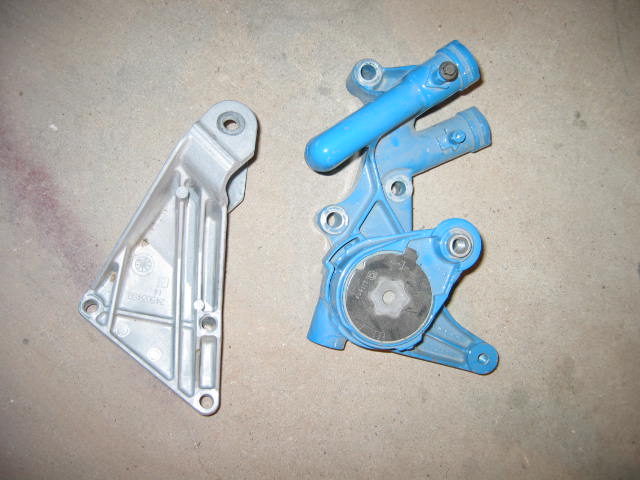

<< Send these parts here and the Fiero V6 Alt bracket
Inlet Pipe part needed for 84-86 Fieros
New 1999 GTP alternator support

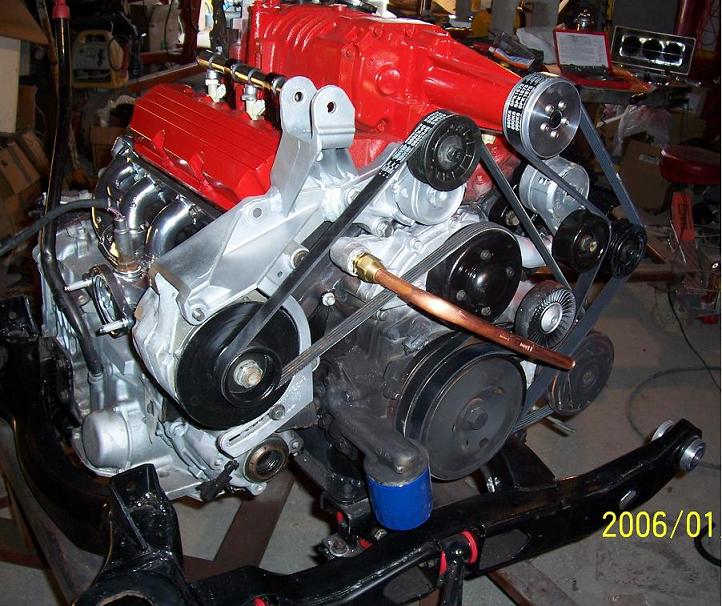

Fiero Alternator used in the Version 1 below.

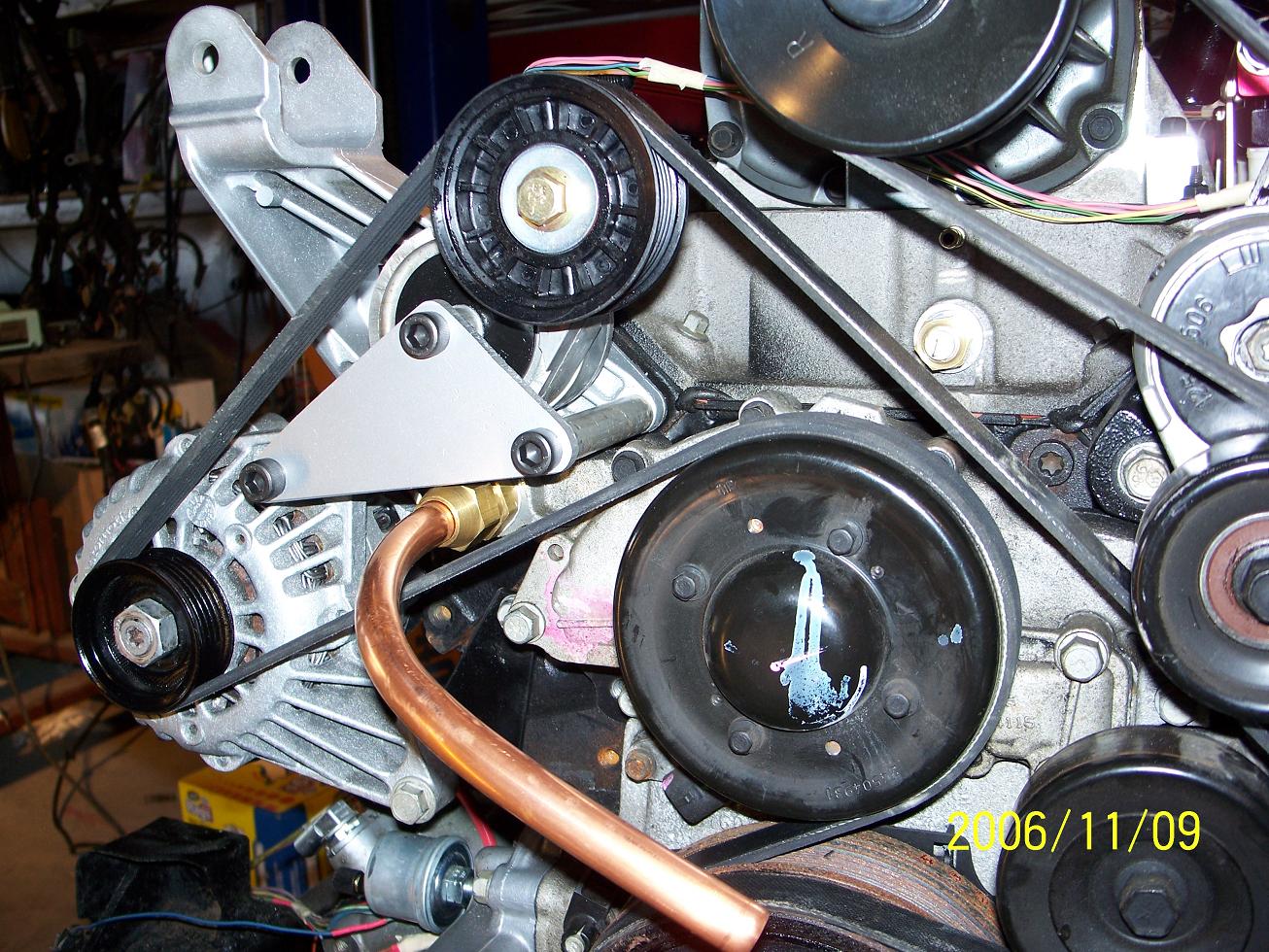

New 1997and 1998 Alternator Low Alt Mount support.. This also shows heater core return support on 85 and 86 Fiero chassis

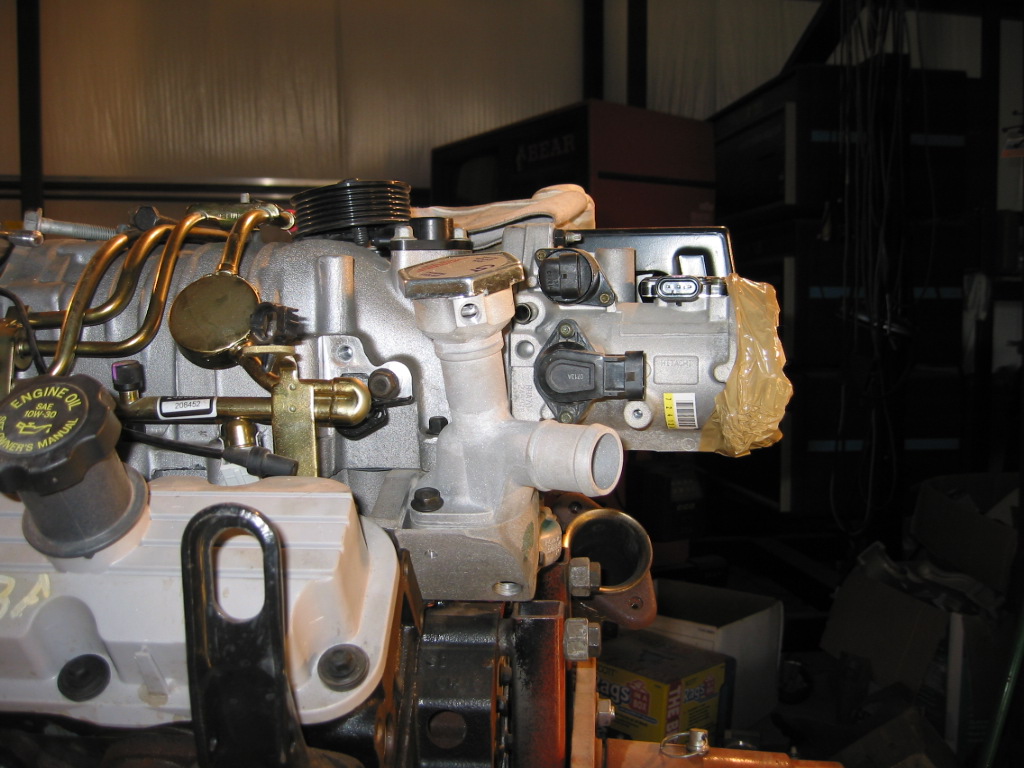

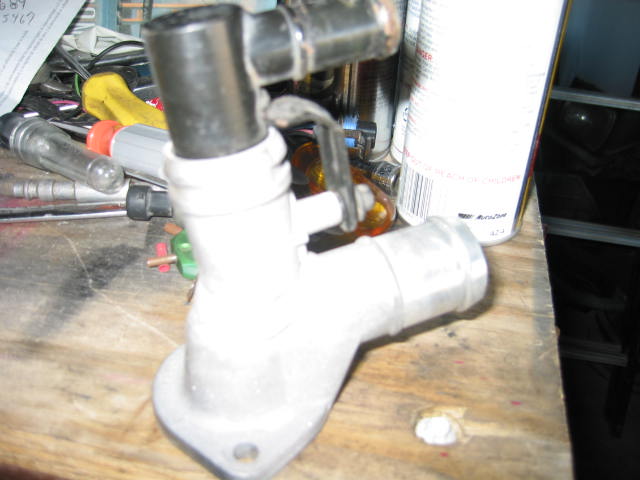

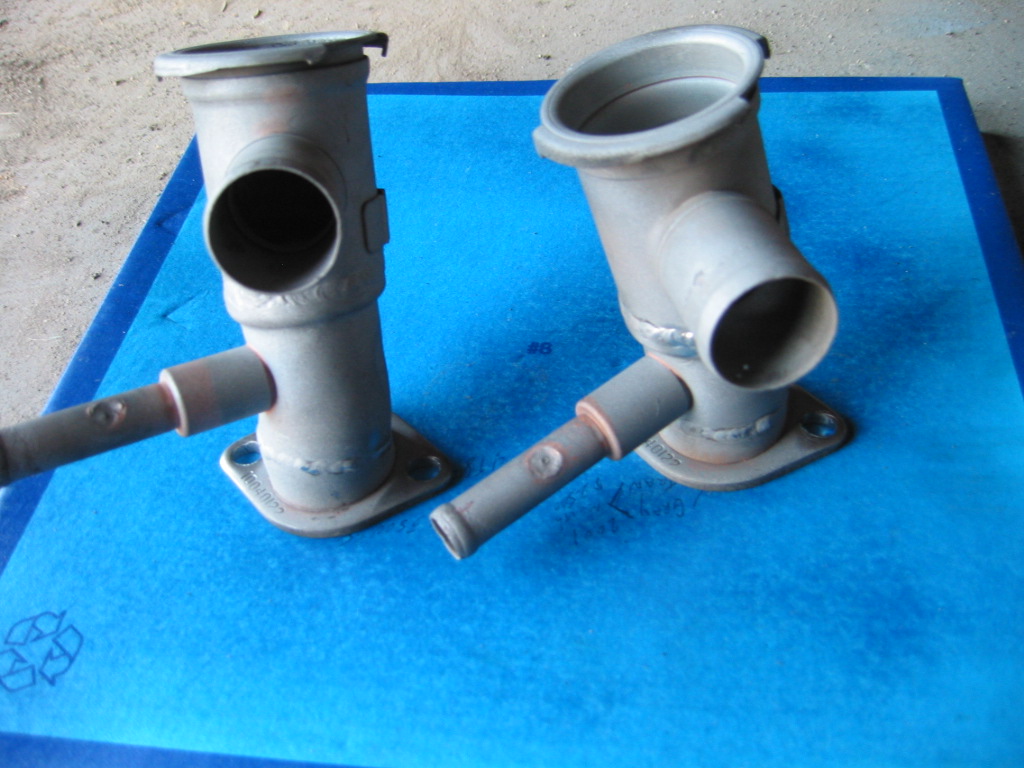

ThermoStat input and outlet solutions
This is 4 different choices of ThermoStat housings
AC Hose Solutions
You send me your Fiero AC hose set, and a 3800SC hose set, I make it to this configuration. Hose ends are new, with new rubber hose. $165 includes priority mails shipping to you.
If I supply the Fiero hose add $75
If I supply the 3800SC hose add $100

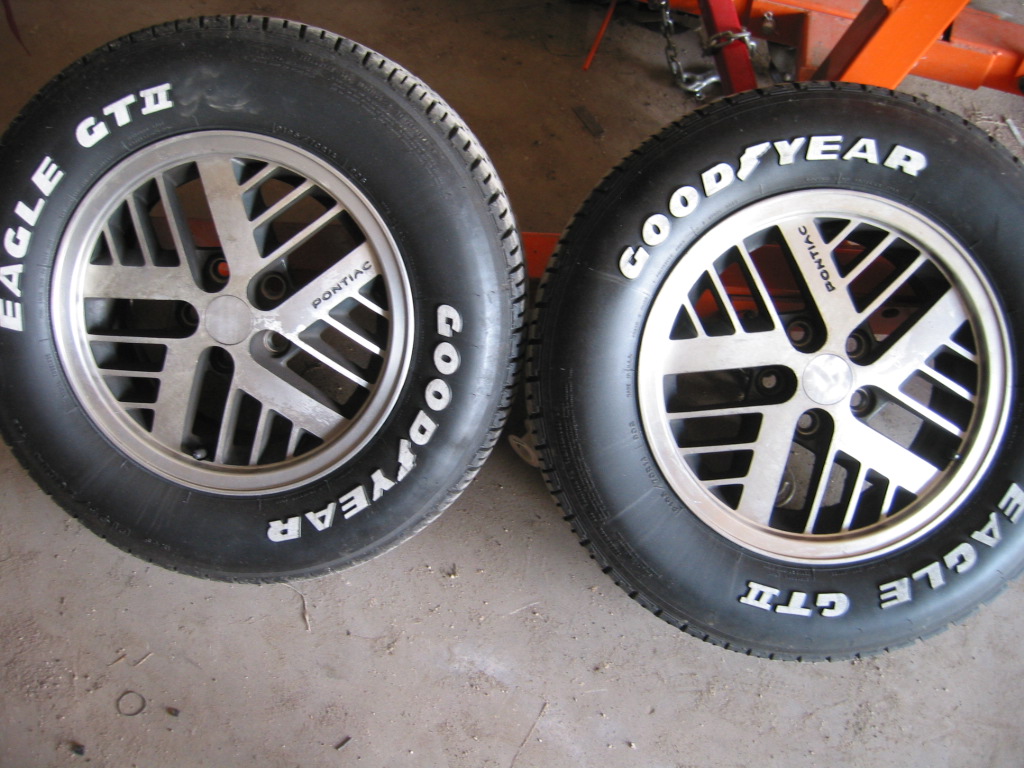

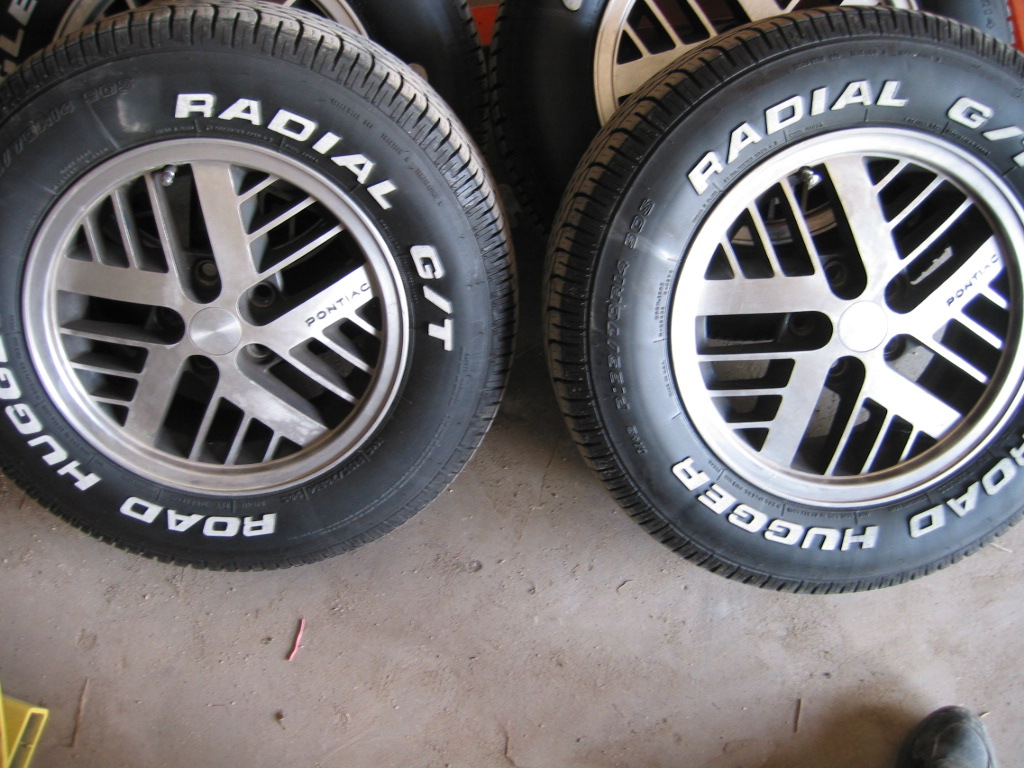

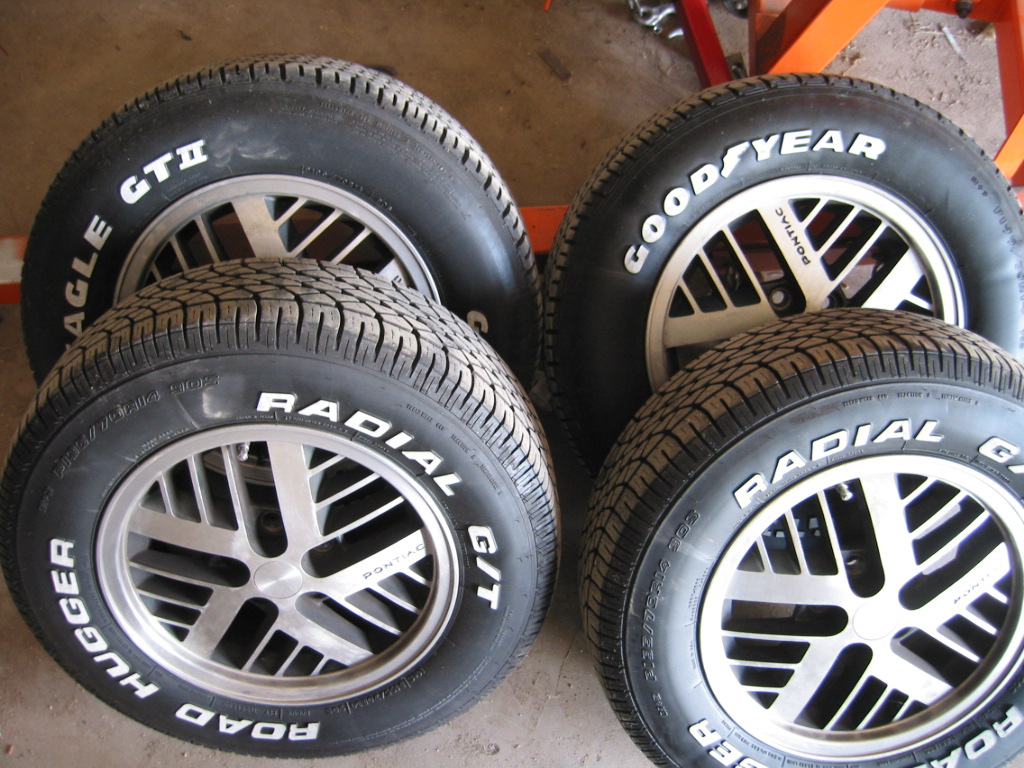

86 SE wheels with NEW tires $300 shipped UPS or $225 picked up local
Upgrade items history :
Sold 88 GT black lace wheels 06-15-03 Danny in Colony, Texas
Sold 88 GT Gold lace wheels 11-08-03 Bill in SugarLand Texas
Sold 88 GT Gold lace wheels
06-10-04 Darin in Ft Worth Texas
