How to Measure Bolt Patterns

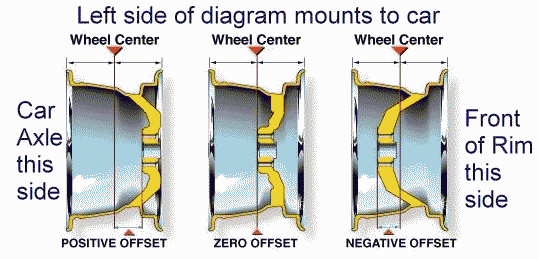

Offset Explained
Wheel / Bolt Pattern Reference
| ACURA |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
OFFSET |
|
|
| 2.2, 3.0 CL |
95-on |
15 X 6 |
4x114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
|
| 3.0 CL V-6 |
98-on |
|
5X114.3 |
12mmX1.5 |
70.3 |
35-45mm |
|
|
| INTEGRA |
86-01 |
14 X 6 |
4X100 |
12mmX1.5 |
56.1 |
35-45mm |
|
|
| LEGEND |
86-90 |
15 X 6 |
4X114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
|
| LEGEND |
91-on |
15 X 6.5 |
5X114.3 |
12mmX1.5 |
70.3 |
35-45mm |
|
| NSX |
91-on |
15X6.5F/16X8R |
5X114.3 |
12mmX1.5 |
70.3 |
35-45mm |
|
| RL 3.5 |
96-on |
15 X 6.5 |
5X114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
| RSX |
01-on |
|
5X114.3 |
12mmX1.5 |
70.3 |
35-45mm |
|
| TL 2.5 |
95-on |
15 X 6 |
4X114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
| TL 3.5 |
96-on |
15 X 6.5 |
5X114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
| TL 3.5 TYPE S |
02- |
17x6.5 |
5X114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
| VIGOR |
91-93 |
15 X 6 |
4X114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
| SLX |
96-99 |
16 X 7 |
6X139.7 |
12mmX1.5 |
108 |
20mm |
|
| MDX |
01-on |
17x7.5 |
5x114.3 |
12mmX1.5 |
70.3 |
35-45mm |
|
| AUDI |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| 2.2, 3.0 CL |
95-on |
15 X 6 |
4x114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
| 3.0 CL V-6 |
98-on |
|
5X114.3 |
12mmX1.5 |
70.3 |
35-45mm |
|
| INTEGRA |
86-01 |
14 X 6 |
4X100 |
12mmX1.5 |
56.1 |
35-45mm |
|
| LEGEND |
86-90 |
15 X 6 |
4X114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
| LEGEND |
91-on |
15 X 6.5 |
5X114.3 |
12mmX1.5 |
70.3 |
35-45mm |
|
| NSX |
91-on |
15X6.5F/16X8R |
5X114.3 |
12mmX1.5 |
70.3 |
35-45mm |
|
| RL 3.5 |
96-on |
15 X 6.5 |
5X114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
| RSX |
01-on |
|
5X114.3 |
12mmX1.5 |
70.3 |
35-45mm |
|
| TL 2.5 |
95-on |
15 X 6 |
4X114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
| TL 3.5 |
96-on |
15 X 6.5 |
5X114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
| TL 3.5 TYPE S |
02- |
17x6.5 |
5X114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
| VIGOR |
91-93 |
15 X 6 |
4X114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
| SLX |
96-99 |
16 X 7 |
6X139.7 |
12mmX1.5 |
108 |
20mm |
|
| MDX |
01-on |
17x7.5 |
5x114.3 |
12mmX1.5 |
70.3 |
35-45mm |
|
| BMW |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| 318,325 |
84-91 |
14 X 6 |
4X100 |
12mmX1.5b |
57.1 |
20mm |
|
| 318, 325, 328, 330 |
92-on |
15 X 7 |
5X120 |
12mmX1.5b |
72.56 |
35-45mm |
|
| 330 |
01- |
16x7 |
5X120 |
12mmX1.5b |
72.56 |
35-45mm |
|
| 320,323 |
79-83 |
13 X 5.5 |
4X100 |
12mmX1.5b |
72.56 |
20mm |
|
| 5,6,7 SERIES |
75-88 |
14 X 6 |
5X120 |
12mmX1.5b |
72.56 |
20mm |
|
| 5,7 SERIES |
89-96 |
15 X 7 |
5X120 |
12mmX1.5b |
72.56 |
20mm |
|
| 5 SERIES |
97- |
16X7 |
5X120 |
12mmX1.5b |
74.1 |
20mm |
|
| 7 SERIES |
75-87 |
14 X 6 |
5X120 |
12mmX1.5b |
72.56 |
20mm |
|
| 740,750 |
95-on |
16 X 7.5 |
5X120 |
12mmX1.5b |
72.56 |
20mm |
|
| 8-SERIES |
92-on |
16 X 7.5 |
5X120 |
12mmX1.5b |
72.56 |
20mm |
|
| M3 |
94-on |
17x7.5 |
5x120 |
- |
72.56 |
20mm |
|
| M5 |
01- |
18X8F/18X9.5R |
5x120 |
12mmX1.5b |
74.1 |
20mm |
|
| Z3 |
96-on |
16 X 7 |
5X120 |
12mmX1.5b |
72.56 |
35-45mm |
|
| Z8 |
01- |
18x8F/18X9R |
5x120 |
12mmX1.5b |
- |
|
| X5 3.0 |
01- |
17x7.5 |
5X120 |
14mmX1.5b |
74.1 |
35-45mm |
|
| X5 4.4 |
01- |
19x8 |
5x120 |
14mmX1.5b |
74.1 |
35-45mm |
|
| X5 4.6 |
02- |
20x8.5 |
5X120 |
14mmX1.5b |
74.1 |
35-45mm |
|
| BUICK |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| LE SABRE,RIVIERA) |
64-87 |
15 X 7 |
5X127.0 |
1/2-RH |
- |
0mm |
|
| ALL MID-SIZE RWD |
64-88 |
14"/15" |
5X120.7 |
7/16-RH, or |
- |
|
|
| CENTURY |
80-89 |
13 X 5.5 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
|
| CENTURY HD |
86-89 |
14 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
|
| CENTURY |
90-on |
14 X 5.5 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
|
| ELECTRA |
85-89 |
14 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
|
| LE SABRE |
86-96 |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
|
| LE SABRE CSM |
77-85 |
15 X 6 |
5X120.7 |
7/16-RH |
- |
0mm |
|
|
| PARK AVENUE |
85-96 |
14 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
|
| PARK AVENUE ULTRA |
97- |
16X7 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
|
| REATTA |
88-91 |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
|
| REGAL |
88-96 |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
|
| REGAL |
93-on |
16 X 6.5 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
|
| REGAL T-TYPE |
85-89 |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
|
| RIVIERA |
86-89 |
14 X 6 |
5X115 |
12mmX1.5 |
70.3 |
20mm |
|
|
| RIVIERA |
93-96 |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
|
| RIVIERA |
95-on |
16 X 7 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
|
| RIVIERA FWD |
79-85 |
15 X 7 |
5X120.7 |
12mmX1.5 |
- |
35-45mm |
|
|
| RIVIERA T-TYPE |
86-89 |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
20mm |
|
|
| ROADMASTER, ESTATE WAGON |
90-96 |
15 X 7 |
5X127.0 |
12mmX1.5 |
- |
0mm |
|
|
| SKYHAWK |
81-89 |
13 X 5.5 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
|
| SKYHAWK |
85-89 |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
|
| SKYLARK |
81-90 |
13 X 5.5 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
|
| SKYLARK |
90-96 |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
|
| SKYLARK GS |
97 |
15 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
|
| SOMERSET RGL |
85-87 |
13 X 5.5 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
|
| SOMERSET RGL |
85-87 |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
|
| RENDEZVOUS |
02- |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
|
| CADILLAC |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
|
| ALLANTE |
87-93 |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
|
| BROUGHAM,FWD |
85-on |
14 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| CATERA |
96-on |
16 X 6.5 |
5X110 |
12mmX1.5 |
65.1 |
35-45mm |
|
| CIMMARON |
81-88 |
13 X 5.5 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| DEVILLE |
85-on |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| ELDORADO, SEVILLE |
79-85 |
15 X 7 |
5X120.7 |
12mmX1.5 |
- |
35-45mm |
|
| ELDORADO |
86-91 |
14 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| ELDORADO, SEVILLE, STS |
92-on |
16 X 7 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| FLEETWOOD |
85-88 |
14 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| FLEETWOOD |
86-96 |
15 X 7 |
5X127.0 |
12mmX1.5 |
- |
0mm |
|
| SEDAN DEVILLE |
93-on |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| SEVILLE |
76-80 |
15 X 7 |
5X120.7 |
12mmX1.5 |
- |
0mm |
|
| SEVILLE |
86- |
14 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| ESCALADE, EXT |
98-on |
17X8 |
6X139.7 |
14mmX1.5 |
78.3 |
20mm |
|
| CHEVROLET |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| ALL MID & FULL SIZE RWD |
55-88 |
14",15" |
5X120.7 |
7/16-RH |
- |
0mm |
|
| WAGONS & HD models |
55-95 |
15" |
5X127.0 |
1/2-RH |
- |
0mm |
|
| BELAIR,BISCAYNE |
77-87 |
15 X 7 |
5X120.7 |
7/16-RH |
- |
0mm |
|
| BERETTA |
87-on |
13 X 5.5 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| CAMARO |
82-92 |
15 X 7 |
5X120.7 |
12mmX1.5 |
- |
0mm |
|
| CAMARO |
93-on |
16 X 7.5 |
5X120.7 |
12mmX1.5 |
70.3 |
35-45mm |
|
| CAMARO,IROC Z |
85-92 |
16 X 8 |
5X120.7 |
12mmX1.5 |
- |
0mm/20mm |
|
| CAMARO Z-28 |
93-on |
16 X 8 |
5X120.7 |
12mmX1.5 |
70.3 |
35-45mm |
|
| CAPRICE CLASSIC |
90-97 |
15 X 7 |
5X127.0 |
12mmX1.5 |
- |
0mm |
|
| CAVALIER |
80-on |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| CELEBRITY |
80-89 |
13 X 5.5 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| CELEBRITY EUROSPORT |
82-89 |
14 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| CHEVETTE |
75-86 |
13 X 5 |
4X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| CITATION |
80-86 |
13 X 5.5 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| CORSICA |
87-on |
15 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| CORVETTE |
68-82 |
15 X 8 |
5X120.7 |
7/16-RH |
- |
0mm |
|
| CORVETTE |
84-87 |
16 X 9.5 |
5X120.7 |
12mmX1.5 |
- |
20mm |
|
| CORVETTE |
88-89 |
16 X 9.5 |
5X120.7 |
12mmX1.5 |
- |
20mm |
|
| CORVETTE |
90-96 |
17 X 9.5 |
5X120.7 |
12mmX1.5 |
- |
35-45mm |
|
| CORVETTE |
93-96 |
17 X 8.5 |
5X120.7 |
12mmX1.5 |
- |
35-45mm |
|
| CORVETTE ZR1 |
91-on |
17 X 9.5F |
5X120.7 |
12mmX1.5 |
- |
35-45mm |
|
| CORVETTE ZR1 |
91-on |
17 X 11R |
5X120.7 |
12mmX1.5 |
- |
35-45mm |
|
| IMPALA,CAPRIC |
77-87 |
15 X 7 |
5X120.7 |
7/16-RH |
- |
0mm |
|
| IMPALA |
99- on |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| IMPALA SS |
94-97 |
16X8 |
5X127.0 |
12MMX1.5RH |
- |
0mm |
|
| LUMINA |
90-on |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| LUMINA |
90-on |
16 X 6.5(OPT.) |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| MALIBU |
97-on |
15 X 7 |
5X115 |
12MMX1.5 |
70.3 |
35-45mm |
|
| MONTE CARLO |
95-on |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
20mm |
|
| MONTE CARLO |
95-on |
16 X 6.5(OPT.) |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| NOVA/SPECTRUM |
86-89 |
13 X 5.5 |
4X100 |
12mmX1.5 |
- |
35-45mm |
|
| PRIZM |
90-on |
14 X 5.5 |
4X100 |
10mmX1.25 |
- |
35-45mm |
|
| SPRINT |
88-89 |
12 X 4 |
4X114.3 |
10mmX1.25 |
- |
35-45mm |
|
| VENTURE |
97-on |
15 X 6 |
5x115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| CHEVROLET/GMC TRUCK/VAN/SUV |
- |
- |
|
| 1/2 TON BLAZER, JIMMY, SUB FULL SIZE 2X4 |
71-91 |
15 X 6(7) |
5X127.0 |
1/2-RH |
- |
0mm |
|
| 1/2 TON BLAZER, JIMMY, SUB FULL SIZE 4x4 |
71-91 |
15 X 7 |
6X139.7 |
7/16-RH |
- |
0mm |
|
| 1/2 TON BLAZER, JIMMY, SUBURBAN, |
- |
|
| TAHOE, YUKON, DENALI FULL SIZE 4X4 |
92-on |
16x7 |
6X139.7 |
14mmX1.5 |
78.3 |
20mm |
|
| TAHOE, YUKON 2X4 |
92-99 |
15 X 6(7) |
5X127.0 |
14mmX1.5 |
|
0mm |
|
| 1/2 TON BLAZER, JIMMY, SUBURBAN, |
- |
|
| TAHOE, YUKON 2X4 |
00-on |
15 X 6(7) |
6X139.7 |
14mmX1.5 |
78.3 |
0mm |
|
| 1/2 TON TRUCK ALL MODELS 2X4 |
67-87 |
15 X 6(7) |
5X127.0 |
1/2-RH |
- |
0mm |
|
| 1/2 TON TRUCK ALL MODELS 2X4 |
88-98 |
15 X 6(7) |
5X127.0 |
14mmX1.5 |
- |
0mm |
|
| 1/2 TON TRUCK ALL MODELS 4X4 |
67-87 |
15 X 7 |
6X139.7 |
7/16-RH |
- |
0mm |
|
| 1/2 TON TRUCK ALL MODELS 4X4 |
88-98 |
16x7 |
6X139.7 |
14mmX1.5 |
78.3 |
20mm |
|
| 1/2 TON TRUCKS 2X4 & 4X4 |
99-ON |
16X7 |
6X139.7 |
14mmX1.5 |
78.3 |
20mm |
|
| 3/4 TON TRUCK 2X4 & 4X4 |
67-ON |
16X7 |
6X139.7 |
1/2 or 14mm |
- |
0mm |
|
| ASTRO/SAFARI |
85-on |
15 X 6 |
5X127.0 |
1/2-RH or |
- |
0mm |
|
| AVALANCHE |
02-on |
16X7 |
6X139.7 |
14mmX1.5 |
78.3 |
|
|
| CYCLONE, TYPHOON |
ALL |
16 X 8 |
5X120.7 |
12mmX1.5 |
- |
35-45mm |
|
| EL CAMINO, CABALLERO |
64-81 |
14 X 6 |
5X120.7 |
7/16-RH |
- |
0mm |
|
| EL CAMINO, CABALLERO |
82-87 |
14 X 6 |
5X120.7 |
12mmX1.5 |
- |
0mm |
|
| ENVOY |
02-on |
16X7 |
6X127 |
12mmX1.5 |
78.3 |
35-45mm |
|
| LUMINA APV |
90-96 |
14 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| S-10, S-15 BLAZER, JIMMY, |
- |
|
| SONOMA 2X4 MID SIZE |
82-on |
15 X 7 |
5X120.7 |
12mmX1.5 |
- |
0mm |
|
| S-10, S-15 BLAZER, JIMMY, |
- |
|
| SONOMA 4X4 MID SIZE |
83-on |
15 X 6 |
5X120.7 |
12mmX1.5 |
- |
35-45mm |
|
| SAVANA 1500 |
01-on |
16X6 |
5X127.0 |
14mmX1.5 |
- |
|
| TRACKER |
98-on |
15 X 6 |
5X139.7 |
12mmX1.25 |
- |
0mm/20mm |
|
| TRAILBLAZER |
02- |
16X7 |
6X127 |
12mmX1.5 |
78.3 |
35-45mm |
|
| VAN G-SERIES 1/2 TON |
71-96 |
15 X 6 |
5X127.0 |
1/2-RH |
- |
0mm |
|
| VAN G-SERIES, 3/4 TON |
96-97 |
16 X 6 |
6X139.7 |
14mmX1.5 |
- |
0mm |
|
| VENTURE |
97- |
15X6 |
5X115 |
12mmX1.5 |
70.3 |
- |
|
| DODGE |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| ALL FULL SIZE (CORONET, MONACO, POLARA, ETC.) |
57-77 |
14 X 6 |
5X114.3 |
1/2-RH |
- |
0mm |
|
| ARIES |
81-86 |
13 X 5.5 |
4X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| ARIES |
86-89 |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| AVENGER |
95-97 |
14 X 6 |
5X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| AVENGER |
97- |
16X7 |
5X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| AVENGER ES |
97- |
17X7 |
5X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| CHARGER 2.2 |
82-86 |
13 X 5.5 |
4X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| COLT 3 |
79-92 |
13 X 5.5 |
4X114.3 |
12mmX1.5 |
|
35-45mm |
|
| COLT |
93-94 |
13 X 4.5 |
4X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| DAYTONA |
82-84 |
14 X 6 |
4X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| DAYTONA |
85-93 |
14 X 5.5 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| DAYTONA |
88-93 |
16 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| DAYTONA TURBO |
85-93 |
15 X 6(OPT.) |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| DYNASTY |
88-93 |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| INTREPID |
93-on |
16 X 6 |
5X114.3 |
12mmX1.5 |
71.5 |
35-45mm |
|
| LANCER |
85-89 |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| LANCER TURBO |
86-89 |
15 X 6(OPT.) |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| MONACO |
90-92 |
14 X 6 |
5X108 |
12mmX1.5 |
- |
35-45mm |
|
| NEON |
94-96 |
14 X 5.5 |
4X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| NEON 5 |
94-on |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| SHADOW |
87-94 |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| SHADOW |
87-94 |
15 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| SPIRIT |
89-94 |
15 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| SPIRIT |
89-95 |
14 X 5.5 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| STEALTH |
91-96 |
15 X 6 |
5X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| STEALTH ES,RT |
91-95 |
16 X 8 |
5X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| STEALTH AWD, TURBO |
91-96 |
17 X 8.5 |
5X114.3 |
12mmX1.5 |
- |
20mm/35-45mm |
|
| STRATUS |
95-on |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| STRATUS/ STRATUS RT |
02-on |
16X6 |
5X114.3 |
12mmX1.5 |
71.5 |
35-45mm |
|
| CARAVAN |
84-85 |
14 X 6 |
4X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| CARAVAN |
86-96 |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| GRAND CARAVAN, CARAVAN LE |
87-on |
15 X 6 |
5X114.3 |
12mmX1.5 |
71.5 |
35-45mm |
|
| GRAND CARAVAN SPORT |
97-98 |
16 X 7 |
5X114.3 |
12mmX1.5 |
71.5 |
35-45mm |
|
| GRAND CARAVAN SPORT |
99-on |
17 X 7.5 |
5X114.3 |
12mmX1.5 |
71.5 |
35-45mm |
|
| D-50 & RAM 50 2WD |
79-93 |
14 X 6 |
6X139.7 |
12mmX1.5 |
- |
0mm/20mm |
|
| D-50 & RAM-50 4WD, TURBO DIESEL |
83-93 |
15 X 6 |
6X139.7 |
12mmX1.5 |
- |
0mm/20mm |
|
| DAKOTA 2WD,LE H.D. & 4WD |
87-90 |
14 X 6 |
5X114.3 |
1/2-RH |
- |
0mm/20mm |
|
| DAKOTA 4X4,(OPT.2WD) |
87-90 |
15 X 6 |
5X114.3 |
1/2-RH |
- |
0mm/20mm |
|
| DAKOTA 2&4WD |
91-on |
15 X 6 |
6X114.3 |
1/2-RH |
- |
0mm/20mm |
|
| DAKOTA R/T |
00-on |
17X8 |
6X114.3 |
1/2-RH |
- |
0mm/20mm |
|
| DURANGO, DURANGO R/T |
98- |
15X7(8) |
6X114.3 |
1/2-RH |
- |
0mm/20mm |
|
| RAIDER 4WD |
86-89 |
15 X 6 |
6X139.7 |
12mmX1.5 |
- |
0mm/20mm |
|
| RAMCHARGER 2WD,4WD With Auto Hubs |
75-85 |
15 X 6 |
5X114.3 |
1/2-RH |
- |
0mm |
|
| RAMCHARGER |
79-83 |
15 X 6.5 |
5X139.7 |
1/2-RH |
- |
0mm |
|
| RAMPAGE |
78-85 |
14 X 6 |
4X100 |
12mmX1.5 |
- |
35-45mm |
|
| RAM 1/2 TON TRUCK 2 & 4WD |
94-on |
16 X 7 |
5X139.7 |
1/2-RH |
- |
0mm |
|
| RAM VAN |
85-96 |
15 X 7 |
5X139.7 |
1/2-RH |
- |
0mm |
|
| ALL 1/2 TON TRUCK,VAN |
71-85 |
15 X 6 |
5X114.3 |
1/2-RH |
- |
0mm |
|
| 1/2 TON TRUCK,VAN |
49-70 |
14 X 6 |
5X114.3 |
1/2-RH |
- |
0mm |
|
| 1/2 TON TRUCK 4X4 |
79-83 |
15 X 6 |
5X139.7 |
1/2-RH |
- |
0mm |
|
| 1/2 & 3/4 TON TRUCK |
84-93 |
15 X 7 |
5X139.7 |
1/2-RH |
- |
0mm |
|
| FORD |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| ASPIRE |
94-on |
13 X 4.5 |
4X100 |
12mmX1.5 |
54.1 |
H |
|
| CONTOUR |
95-on |
14 X 6 |
4X108 |
12mmX1.5 |
63.9 |
H |
|
| CROWN VICTORIA |
91-on |
15 X 7 |
5X114.3 |
1/2-RH |
- |
M/L |
|
| ESCORT |
81-90 |
13 X 5.5 |
4X108 |
12mmX1.5 |
63.6 |
H |
|
| ESCORT LX, WAGON |
91-94 |
13 X 5.5 |
4X100 |
12mmX1.5 |
54.1 |
H |
|
| ESCORT GT |
91-96 |
15 X 6 |
4X100 |
12mmX1.5 |
54.1 |
H |
|
| ESCORT LX |
92-97 |
14 X 5 |
4X100 |
12mmX1.5 |
54.1 |
H |
|
| EXP |
81-85 |
13 X 5.5 |
4X108 |
12mmX1.5 |
63.9 |
H |
|
| FESTIVA |
87-93 |
12 X 4 |
4X114.3 |
12mmX1.5 |
- |
H |
|
| FOCUS |
2000-on |
15 X 6 |
4X108 |
12mmX1.5 |
63.9 |
H |
|
| FULL SIZE (GALAXIE,CUSTOM,ETC.) |
57-64 |
14 X 6 |
5X114.3 |
12mmX1.5 |
- |
L |
|
| FULL SIZE |
- |
|
| (CUSTOM,GALAXIE,T-BIRD,ETC.) |
65-72 |
15 X 6 |
5X114.3 |
1/2-RH |
- |
L |
|
| FULL SIZE |
|
|
| (CUSTOM,GALAXIE,T-BIRD) |
73-78 |
15 X 6 |
5X127 |
1/2-RH |
- |
L |
|
| FULL SIZE |
- |
|
| (CROWN VICTORIA,CUSTOM,GALAXIE,LTD) |
79-96 |
15 X 6.5 |
5X114.3 |
1/2-RH |
- |
L |
|
| GRANADA,LTD II,FAIRMONT,T-BIRD |
78-88 |
14 X 5.5 |
4X108 |
1/2-RH |
- |
M |
|
| MID-SIZE (FAIRLANE,FALCON, |
- |
|
| MAVERICK,MUSTANG,ETC.) |
64-74 |
14 X 6 |
4X114.3 |
1/2-RH |
- |
L/M |
|
| MID-SIZE (FAIRLANE,FALCON, |
- |
|
| MAVERICK,MUSTANG,ETC.) |
64-73 |
14 X 6 |
5X114.3 |
1/2-RH |
- |
L |
|
| MUSTANG |
79-93 |
14 X 6 |
4X108 |
1/2-RH |
- |
M |
|
| MUSTANG |
94-on |
15 X 7 |
5X114.3 |
1/2-RH |
- |
M/H |
|
| MUSTANG GT |
94-on |
16 X 7.5 |
5X114.3 |
1/2-RH |
70.3 |
M/H |
|
| MUSTANG GT (OPT.), COBRA |
97-on |
17 X 8 |
5X114.3 |
1/2-RH |
70.3 |
M/H |
|
| MUSTANG 5.0GT |
85-91 |
15 X 7 |
4X108 |
1/2-RH |
- |
M |
|
| MUSTANG 5.0GT |
91-93 |
16 X 7 |
4X108 |
1/2-RH |
- |
M |
|
| PROBE |
88-92 |
14 X 6 |
5X114.3 |
12mmX1.5 |
59.6 |
H |
|
| PROBE |
93-96 |
16 X 7 |
5X114.3 |
12mmX1.5 |
67.1 |
H |
|
| PROBE GT |
88-97 |
15 X 6 |
5X114.3 |
12mmX1.5 |
59.6 |
H |
|
| T-BIRD |
85-88 |
15X7 |
4X108 |
1/2-RH |
- |
M |
|
| T-BIRD |
89-97 |
15 X 6 |
5X108 |
12mmX1.5 |
63.9 |
H |
|
| T-BIRD SC |
89-97 |
16 X 7 |
5X108 |
12mmX1.5 |
63.9 |
H |
|
| T-BIRD |
02-on |
16 X 7 |
5X108 |
12mmX1.5 |
63.9 |
H |
|
| TAURUS |
86-96 |
14 X 6 |
5X108 |
12mmX1.5 |
63.9 |
H |
|
| TAURUS |
86-on |
15 X 7 |
5X108 |
12mmX1.5 |
63.9 |
H |
|
| TAURUS SHO |
97 |
16 X 7 |
5X108 |
12mmX1.5 |
63.9 |
H |
|
| TEMPO |
83-85 |
13 X 5.5 |
4X108 |
12mmx1.5 |
63.9 |
H |
|
| TEMPO |
85-94 |
14 X 6 |
4X108 |
12mmX1.5 |
63.9 |
H |
|
| TEMPO |
92-94 |
15 X 6 |
4X108 |
12mmX1.5 |
63.9 |
H |
|
| ZX2 |
97- |
15X6 |
4X100 |
12mmX1.5 |
54.1 |
H |
|
| AEROSTAR |
85-97 |
14 X 6 |
5X114.3 |
1/2-RH |
- |
M |
|
| BRONCO |
66-on |
15 X 6(7) |
5X139.7 |
1/2-RH |
- |
L |
|
| BRONCO II 7 |
82-90 |
15X7 |
5X114.3 |
1/2-RH |
- |
L/M |
|
| COURIER PICKUP |
77-84 |
14 X 6 |
6X139.7 |
12mmX1.5 |
- |
L |
|
| ESCAPE |
01-on |
15X 6 |
5X114.3 |
12mmX1.5 |
- |
H |
|
| EXCURSION |
00-on |
16x7 |
8X170 |
14mmX2.0 |
- |
L |
|
| EXPEDITION |
97-00 |
16X7 |
5X135 |
12X1.75 |
87 |
L |
|
| EXPEDITION |
2-Jan |
16X7 |
5X135 |
14mmX2.0 |
87 |
L |
|
| EXPEDITION |
02-on |
17x8 |
6x135 |
14mmX2.0 |
87 |
L |
|
| EXPLORER, EXPLORER SPORT TRAC 7 |
90-on |
15 X 7 |
5X114.3 |
1/2-RH |
- |
M/H |
|
| F1/2 TON F-100,150 TRUCK |
54-95 |
15 X 6 |
5X139.7 |
1/2-RH |
- |
L |
|
| F150 TRUCK |
96-00 |
16 X 7 |
5X135 |
12X1.75MM |
87 |
L |
|
| F150 TRUCK |
01-on |
16 X 7 |
5X135 |
14mmX2.0 |
87 |
L |
|
| RANCHERO |
65-84 |
14 X 5.5 |
5X114.3 |
1/2-RH |
- |
L |
|
| RANGER 2WD |
81-on |
14 X 6 |
5X114.3 |
1/2-RH |
- |
L/M |
|
| RANGER 4WD 7 |
83-on |
15 X 6 |
5X114.3 |
1/2-RH |
- |
L/M |
|
| WINDSTAR |
94-on |
15 X 6 |
5X108 |
12mmX1.5 |
63.9 |
H |
|
| 1/2 TON E-100,150 VAN |
68-84 |
14 X 6 |
5X114.3 |
1/2-RH |
- |
L |
|
| 1/2 TON E-100,150 VAN |
70-96 |
15 X 6 |
5X139.7 |
1/2-RH |
- |
L |
|
| 1/2 TON F-100 (4X2) POWER BRAKES |
80-85 |
15 X 6 |
5X114.3 |
1/2-RH |
- |
L |
|
| HONDA |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| ACCORD |
82-89 |
13 X 5 |
4X100 |
12mmX1.5 |
56.1 |
35-45mm |
|
| ACCORD |
90-96 |
14 X 6 |
4X114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
| ACCORD EX,LX,WAGON |
90-97 |
15 X 6 |
4X114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
| ACCORD |
98- |
15X6 |
4X114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
|
| ACCORD (V-6) |
98- |
15X6 |
5X114.3 |
12mmX1.5 |
70.3 |
35-45mm |
|
|
| CIVIC |
80-96 |
13 X 5 |
4X100 |
12mmX1.5 |
56.1 |
35-45mm |
|
|
| CIVIC, EX |
89-on |
14 X 5 |
4X100 |
12mmX1.5 |
56.1 |
35-45mm |
|
|
| CIVIC SI HATCHBACK |
02-on |
16X7 |
5X114.3 |
12mmX1.5 |
70.3 |
35-45mm |
|
|
| CRX SI |
86-91 |
14 X 6 |
4X100 |
12mmX1.5 |
56.1 |
35-45mm |
|
|
| CRX,PRELUDE |
80-91 |
13 X 5.5 |
4X100 |
12mmX1.5 |
56.1 |
35-45mm |
|
|
| DEL SOL, V-TECH |
92-on |
14 X 6 |
4X100 |
12mmX1.5 |
56.1 |
35-45mm |
|
|
| DEL SOL |
93-97 |
13 X 4.5 |
4X100 |
12mmX1.5 |
56.1 |
35-45mm |
|
|
| INSIGHT |
01-on |
- |
4X100 |
12mmX1.5 |
56.1 |
35-45mm |
|
|
| PRELUDE |
92-96 |
14 X 6 |
4X114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
|
| PRELUDE SI |
86-91 |
14 X 6 |
4X100 |
12mmX1.5 |
56.1 |
35-45mm |
|
|
| PRELUDE SI |
92-96 |
15 X 6 |
4X114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
|
| PRELUDE, V-TECH |
97-01 |
16X7 |
5X114.3 |
12mmX1.5 |
70.3 |
35-45mm |
|
|
| S2000 |
99-on |
16X7 |
5X114.3 |
12mmX1.5 |
70.3 |
35-45mm+ |
|
|
| EV MINI VAN |
97-on |
15 X 6 |
4X114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
|
| CR-V |
97-on |
15 X 6 |
5X114.3 |
12mmX1.5 |
64.1 |
35-45mm |
|
|
| ODYSSEY |
95-on |
15 X 6 |
5X114.3 |
12mmX1.5 |
70.3 |
35-45mm |
|
|
| PASSPORT |
94-on |
15 X 6 |
6X139.7 |
12mmX1.5 |
108 |
0mm/20mm |
|
|
| INFINITI |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
|
| G20 |
91-96 |
14 X 6 |
4X114.3 |
12mmX1.25 |
66.1 |
35-45mm |
|
|
| I30 |
95-97 |
15 X 6.5 |
5X114.3 |
12mmX1.25 |
66.1 |
35-45mm |
|
|
| J30 |
92-97 |
15 X 6 |
5X114.3 |
12mmX1.25 |
66.1 |
35-45mm |
|
|
| M30 |
90-92 |
15 X 6 |
4X114.3 |
12mmX1.25 |
66.1 |
20mm |
|
| Q45 |
90-on |
15 X 6 |
5X114.3 |
12mmX1.25 |
66.1 |
35-45mm |
|
| QX4 |
96-on |
16 X 7 |
6X139.7 |
12mmX1.25 |
108 |
20mm |
|
| ISUZU |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| I-MARK |
83-89 |
13 X 5 |
4X100 |
12mmX1.5 |
- |
35-45mm |
|
| I-MARK TURBO |
87-89 |
14 X 6 |
4X100 |
12mmX1.5 |
60.1 |
35-45mm |
|
| IMPULSE |
83-92 |
14 X 6 |
4X100 |
12mmX1.5 |
60.1 |
35-45mm |
|
| STYLUS |
91-on |
14 X 6 |
4X100 |
12mmX1.5 |
60.1 |
35-45mm |
|
| AMIGO |
89-00 |
15 X 6 |
6X139.7 |
12mmX1.5 |
108 |
0mm/20mm |
|
| AXIOM |
02-on |
16 X 7 |
6X139.7 |
12mmX1.5 |
108 |
20mm |
|
| HOMBRE |
96 |
15 X 6 |
5X120.7 |
12mmX1.5 |
- |
0mm |
|
| OASIS |
97- |
15X6 |
5X114.3 |
12mnmX1.5 |
70.3 |
35-45mm |
|
| PICKUP |
80-96 |
14 X 6 |
6X139.7 |
12mmX1.5 |
108 |
0mm/20mm |
|
| RODEO, RODEO SPORT |
91-on |
15 X 7 |
6X139.7 |
12mmx1.5 |
108 |
0mm/20mm |
|
| TROOPER |
92-96 |
16 X 7 |
6X139.7 |
12mmX1.5 |
108 |
20mm |
|
| TROOPER II |
84-91 |
15 X 6 |
6X139.7 |
12mmX1.5 |
108 |
0mm/20mm |
|
| VEHICROSS |
99-on |
16X7 |
6X139.7 |
12mmX1.5 |
108 |
20mm |
|
| JAGUAR |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| XJ, XK ALL MODELS 2 |
69-on |
16 X 7 |
5X120.7 |
1/2-RH |
74.1 |
20mm |
|
| S-TYPE |
99-on |
16 X 7 |
5X108 |
12mmX1.5 |
63.6 |
35-45mm |
|
| X-TYPE |
02-on |
- |
5X108 |
12mmX1.5 |
63.6 |
35-45mm |
|
| JEEP |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| ALL JEEP,CJ |
46-85 |
15 X 6 |
5X139.7 |
1/2-RH |
108 |
0mm |
|
| ALL 6 LUG JEEP CHEROKEE, GRAND WAGONEER |
74-92 |
15 X 6 |
6X139.7 |
7/16-RH |
108 |
0mm |
|
| CHEROKEE,WRANGLER |
80-on |
15 X 6, 16 X 7 |
5X114.3 |
1/2-RH |
- |
0mm/20mm |
|
| COMMANCHE,CHIEF |
80-93 |
15 X 6 |
5X114.3 |
1/2-RH |
- |
0mm/20mm |
|
| GRAND CHEROKEE |
93-98 |
15 X 7 |
5X114.3 |
1/2-RH |
- |
0mm/20mm |
|
| GRAND CHEROKEE |
99-ON |
16 x 7 |
5x127.0 |
1/2-RH |
71.5 |
35-45mm |
|
| LIBERTY |
02-on |
16 X 7 |
5X114.3 |
1/2-RH |
- |
35-45mm/20mm |
|
| KIA |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| OPTIMA |
01-on |
- |
4X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| RIO |
2000-on |
- |
4x100 |
12mmX1.5 |
54.1 |
35-45mm |
|
| SEPHIA, SPECTRA |
94-on |
13 X 5 |
4X100 |
12mmX1.5 |
56.1 |
35-45mm |
|
| SPORTAGE |
94- |
15X7 |
5X139.7 |
12X1.5 |
108 |
0mm/20mm |
|
| LEXUS |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| ES 250 |
90-91 |
15 X 6 |
5X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
| ES 300 |
92-97 |
15 X 6 |
5X114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
| GS 300 |
93-on |
16 X 7.5 |
5X114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
| GS 400 |
98 |
16X7.5 |
5X114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
| GS 430 |
01-on |
17 x 7 |
5X114.3 |
12mmX1.5 |
60.1 |
20mm |
|
| IS 300 |
2000-on |
17 x 7 |
5X114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
| LS 400 |
90-94 |
16 X 7 |
5X114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
| LS 400 |
95-on |
16 X 7 |
5X114.3 |
12mmX1.5 |
60.1 |
20mm |
|
| LS 430 |
2000-on |
16 X 7 |
5X114.3 |
12mmX1.5 |
60.1 |
20mm |
|
| SC 300 |
92-96 |
16 X 6.5 |
5X114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
| SC 400 |
91-on |
16 X 7 |
5X114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
|
| SC 430 8 |
2002-on |
18x8.5 |
5x114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
|
| LX 450 |
96-97 |
16 X 8 |
6X139.7 |
12mmX1.5 |
108 |
20mm |
|
|
| LX 470 |
97-on |
16 x 8 |
5x150 |
- |
110 |
35-45mm |
|
|
| RX300 |
98- |
16x7 |
5x114.3 |
12mmX1.5 |
60.1 |
20mm |
|
|
| LINCOLN |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
|
| CONTINENTAL |
88-97 |
15 X 6 |
5X108 |
12mmX1.5 |
63.6 |
35-45mm |
|
|
| CONTINENTAL ,MARK III |
68-72 |
15 X 6 |
5X114.3 |
1/2-RH |
- |
0mm |
|
|
| CONTINENTAL, MARK III |
73-79 |
15 X 6 |
5X127 |
1/2-RH |
- |
0mm |
|
|
| LS |
99-on |
16 X 7 |
5X108 |
12mmX1.5 |
63.6 |
35-45mm |
|
|
| LSC |
88-on |
16 X 7 |
5X114.3 |
1/2-RH |
- |
20mm |
|
|
| MARK VII |
84-92 |
15 X 7 |
5X114.3 |
1/2-RH |
- |
20mm |
|
|
| MARK VIII |
93-on |
16 X 7 |
5X108 |
12mmX1.5 |
63.6 |
35-45mm |
|
|
| TOWN CAR |
82-97 |
15 X 6 |
5X114.3 |
1/2-RH |
- |
0mm/20mm |
|
|
| TOWN CAR |
98-on |
16X7.5 |
5X114.3 |
1/2-RH |
- |
20mm |
|
|
| BLACKWOOD |
01-on |
16X7 |
5X135 |
14mmX1.75 |
87 |
0mm |
|
|
| NAVIGATOR |
97- |
16X7 |
5X135 |
12mmX1.75 |
87 |
0mm |
|
| NAVIGATOR |
2-Jan |
17x7.5 |
5X135 |
14mmX1.75 |
87 |
0mm |
|
| BLACKWOOD |
02-on |
16X7 |
6X135 |
14mmX1.75 |
87 |
0mm |
|
| NAVIGATOR |
02-on |
16X7 |
6X135 |
14mmX1.75 |
87 |
0mm |
|
| MAZDA |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| GLC |
82-85 |
13 X 5.5 |
4X114.3 |
12mmX1.5 |
59.6 |
35-45mm |
|
| MIATA, MX5 (Use Acorn Lug Nuts) |
90-on |
14 X 6 |
4X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
| MILLENIA |
94-on |
15 X 6.5 |
5X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| MX-3 |
92-96 |
14 X 6 |
4X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
| MX-3 GS |
92-96 |
15 X 6 |
4X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
| MX-6 |
88-96 |
14 X 6 |
5X114.3 |
12mmX1.5 |
59.6 |
35-45mm |
|
| MX-6 |
90-97 |
15 X 6 |
5X114.3 |
12mmX1.5 |
59.6 |
35-45mm |
|
| PROTEGE |
90-01 |
13 X 5.5 |
4X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
| PROTÉGÉ,PROTÉGÉ 5, MP3 |
02-on |
14 X 6 |
5X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| RX-7 |
93-96 |
16 X 8 |
5X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| RX7 GS,SPORT1 |
79-85 |
13 X 5.5 |
4X110 |
12mmX1.5 |
- |
20mm |
|
| RX7 GSL/SE |
84-88 |
14 X 5.5 |
4X114.3 |
12mmX1.5 |
59.6 |
35-45mm |
|
| RX7 GXL,GTU |
86-92 |
15 X 7 |
5X114.3 |
12mmX1.5 |
59.6 |
35-45mm |
|
| RX7 TURBO II |
87-92 |
16 X 7 |
5X114.3 |
12mmX1.5 |
59.6 |
35-45mm |
|
| 323 9 |
86-89 |
13 X 5.5 |
4X114.3 |
12mmX1.5 |
59.6 |
35-45mm |
|
| 323 9 |
90-94 |
13 X 5.5 |
4X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
| 626 |
83-87 |
14 X 5.5 |
4X114.3 |
12mmX1.5 |
59.6 |
35-45mm |
|
| 626 |
88-on |
15 X 6 |
5X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| 929 |
88-on |
15 X 6 |
5X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| B-2000,2200,2300,2600 PICKUP |
77-93 |
14 X 6 |
6X139.7 |
12mmX1.5 |
108 |
0mm/20mm |
|
| B-2500, 3000, 4000 PICKUP |
93-on |
15 X 6 |
5X114.3 |
1/2-RH |
- |
0mm/20mm |
|
| MPV |
89-98 |
14 X 6 |
5X114.3 |
12mmX1.5 |
67.1 |
20mm |
|
| MPV |
99-on |
15 X 6 |
5X114.3 |
12mmX1.5 |
67.1 |
35-45mmIG35-45mm |
|
| NAVAJO |
90-on |
15 X 7 |
5X114.3 |
1/2-RH |
- |
0mm/20mm |
|
| SE-5 OPT.15 |
77-93 |
15 X 6 |
6X139.7 |
12mmX1.5 |
- |
0mm/20mm |
|
| TRIBUTE |
01-on |
- |
5X114.3 |
12mmX1.5 |
67.1 |
35-45mm/20mm |
|
| MERCURY |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| CAPRI |
80-88 |
14 X 5.5 |
4X108 |
12mmX1.5 |
- |
20mm |
|
| CAPRI |
85-88 |
15 X 7 |
4X108 |
1/2-RH |
- |
20mm |
|
| COUGAR |
89-97 |
15 X 6 |
5X108 |
12mmX1.5 |
63.9 |
35-45mm |
|
| COUGAR |
99-on |
16 X 6 |
4X108 |
12mmX1.5 |
63.9 |
35-45mm |
|
| COUGAR |
78-79 |
15 X 6 |
5X114.3 |
1/2-RH |
- |
20mm |
|
| COUGAR |
73-78 |
15 X 6 |
5X127.0 |
1/2-RH |
- |
0mm |
|
| COUGAR XR-7 |
91-96 |
15 X 6.5 |
5X114.3 |
1/2-RH |
- |
0mm/20mm |
|
| COUGAR XR7,MARAUDER,MARQUIS,METEOR |
95-on |
16 X 7 |
5X114.3 |
1/2-RH |
- |
20mm |
|
| FULL SIZE (GRAND MARQUIS,MONTCLAIR,
MONTEREY,ETC.) |
82-83 |
13 X 5.5 |
4X108 |
12mmX1.5 |
63.9 |
35-45mm |
|
| GRAND MARQUIS |
81-87 |
13 X 5.5 |
4X108 |
12mmX1.5 |
63.9 |
35-45mm |
|
| LN-7 |
85-89 |
14 X 6 |
4X108 |
12mmX1.5 |
63.9 |
35-45mm |
|
| LYNX |
68-78 |
14 X 5.5 |
5X114.3 |
1/2-RH |
- |
0mm |
|
| MERKUR XR-4TI |
78-85 |
14 X 5.5 |
4X108 |
1/2-RH |
- |
20mm |
|
| MID-SIZE (COMET,COUGAR,MARQUIS,MONTEGO,ETC.) |
95-96 |
14 X 6 |
4X108 |
12mmX1.5 |
63.9 |
35-45mm |
|
| MONARCH,MARQUIS,ZEPHER |
95-96 |
15 X 6 |
4X108 |
12mmX1.5 |
63.9 |
35-45mm |
|
| MYSTIQUE |
86-92 |
14 X 6 |
5X108 |
12mmX1.5 |
63.9 |
35-45mm |
|
| MYSTIQUE |
86-96 |
15 X 6 |
5X108 |
12mmX1.5 |
63.9 |
35-45mm |
|
| SABLE |
94-on |
16 X 6 |
5X108 |
12mmX1.5 |
63.9 |
35-45mm |
|
| SABLE |
83-85 |
13 X 5.5 |
4X108 |
12mmX1.5 |
63.9 |
35-45mm |
|
| SABLE |
86-94 |
14 X 5.5 |
4X108 |
12mmX1.5 |
63.9 |
35-45mm |
|
| TOPAZ |
92-94 |
15 X 6 |
4X108 |
12mmX1.5 |
63.9 |
35-45mm |
|
| TOPAZ |
88-90 |
13 X 5 |
4X114.3 |
12mmX1.5 |
59.6 |
35-45mm |
|
| TOPAZ |
91-96 |
13 X 5 |
4X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
| TRACER |
91-96 |
14 X 5 |
4X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
| TRACER |
- |
|
| TRACER |
- |
|
| |
96-O1 |
15 X 7 |
5X114.3 |
1/2-RH |
- |
20mm |
|
| |
02-on |
15 X 7 |
5X114.3 |
1/2-RH |
- |
20mm/35-45mm |
|
| MOUNTAINEER |
93-on |
15 X 6 |
5X114.3 |
12mmX1.25 |
66.1 |
35-45mm |
|
| MOUNTAINEER |
- |
|
| VILLAGER |
- |
|
| MITSUBISHI |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| CORDIA,TREDIA |
83-88 |
13 X 5.5 |
4X114.3 |
12mmX1.5 |
- |
35-45mm |
|
| CORDIA,TREDIA |
86-88 |
14 X 5.5 |
4X114.3 |
12mmX1.5 |
- |
35-45mm |
|
| DIAMANTE |
91-96 |
15 X 6 |
5X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| ECLIPSE |
89-96 |
14 X 6 |
5X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| ECLIPSE TURBO |
89-97 |
16 X 6 |
5X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| EXPO |
91-95 |
14 X 6 |
4X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| GALANT |
85-96 |
14 X 5.5 |
4X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| GALANT |
85-96 |
15 X 6 |
4X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| GALANT |
97-ON |
15 X 6 |
5X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| MIRAGE 3 |
85-92 |
13 X 5.5 |
4X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| MIRAGE |
85-92 |
14 X 5.5 |
4X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| MIRAGE |
93-96 |
13 X 4.5 |
4X100 |
12mmX1.5 |
56.1 |
35-45mm |
|
| MIRAGE |
94-97 |
14 X 5.5 |
4X100 |
12mmX1.5 |
56.1 |
35-45mm |
|
| MIRAGE COUPE |
97-on |
14 X 5.5 |
4X100 |
12mmX1.5 |
56.1 |
35-45mm |
|
| PRECIS 3 |
83-93 |
13 X 5.5 |
4X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
|
| STARION |
83-85 |
14 X 6 |
4X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
|
| STARION |
84-87 |
15 X 6.5 |
4X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
|
| STARION,TURBO |
86-89 |
16 X 7,8 |
5X114.3 |
12mmX1.5 |
67.1 |
20mm |
|
|
| 3000,GT,SL |
91-96 |
16 X 8 |
5X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
|
| 3000 GT VR4 |
91-97 |
17 X 8.5 |
5X114.3 |
12mmX1.5 |
67.1 |
20mm |
|
|
| MONTERO |
83-91 |
15 X 6 |
6X139.7 |
12mmX1.5 |
- |
0mm/20mm |
|
|
| MONTERO |
92-on |
15 X 6 |
6X139.7 |
12mmX1.5 |
- |
0mm/20mm |
|
|
| PICKUP |
83-96 |
14 X 6 |
6X139.7 |
12mmX1.5 |
- |
0mm/20mm |
|
|
| PICKUP |
83-94 |
15 X 6 |
6X139.7 |
12mmX1.5 |
- |
0mm/20mm |
|
|
| VAN/WAGON |
87-90 |
14 X 5.5 |
5X114.3 |
12mmX1.5 |
- |
35-45mm |
|
|
| NISSAN |
YEAR |
SIZE |
P.C.D. |
LUG SIZE |
MM |
OS |
|
|
| ALTIMA |
93-01 |
15 X 6 |
4X114.3 |
12mmX1.25 |
66.1 |
35-45mm |
|
|
| ALTIMA |
02-on |
15 X 6 |
5X114.3 |
12mmX1.25 |
66.1 |
35-45mm |
|
|
| MAXIMA |
85-88 |
15 X 6 |
4X114.3 |
12mmX1.25 |
66.1 |
35-45mm |
|
|
| MAXIMA |
89-on |
15 X 6 |
5X114.3 |
12mmX1.25 |
66.1 |
35-45mm |
|
|
| NX 2000 |
91-93 |
14 X 6 |
4X100 |
12mmX1.25 |
59.1 |
35-45mm |
|
|
| PULSAR SE |
87-90 |
14 X 6 |
4X100 |
12mmX1.25 |
59.1 |
35-45mm |
|
|
| PULSAR XE |
87-90 |
13 X 5.5 |
4X100 |
12mmX1.25 |
59.1 |
35-45mm |
|
|
| SENTRA |
83-86 |
13 X 5.5 |
4X114.3 |
12mmX1.25 |
66.1 |
35-45mm |
|
|
| SENTRA |
87-on |
14 X 6 |
4X100 |
12mmX1.25 |
59.1 |
35-45mm |
|
|
| STANZA |
79-83 |
13 X 4.5 |
4X114.3 |
12mmX1.25 |
66.1 |
35-45mm |
|
|
| STANZA |
87-92 |
14 X 6 |
4X114.3 |
12mmX1.25 |
66.1 |
35-45mm |
|
|
| 200SX & TURBO |
84-88 |
15 X 6 |
4X114.3 |
12mmX1.25 |
66.1 |
35-45mm |
|
|
| 200SX |
95-97 |
13 X 5 |
4X100 |
12mmX1.25 |
59.1 |
35-45mm |
|
|
| 200SX |
95-97 |
14 X 5.5 |
4X100 |
12mmX1.25 |
59.1 |
35-45mm |
|
|
| 200SX SE-R |
95-97 |
15 X 5.5 |
4X100 |
12mmX1.25 |
59.1 |
35-45mm |
|
| 240SX |
89-96 |
15 X 6 |
4X114.3 |
12mmX1.25 |
66.1 |
35-45mm |
|
| 240SX,SE |
95-96 |
16 X 5.5 |
5X114.3 |
12mmX1.25 |
66.1 |
35-45mm |
|
| 240Z,260Z,280Z |
70-85 |
14 X 6 |
4X114.3 |
12mmX1.25 |
66.1 |
0mm |
|
| 300ZX |
84-86 |
14 X 6 |
4X114.3 |
12mmX1.25 |
66.1 |
0mm/20mm |
|
| 300ZX |
90-96 |
16 X 7.5 |
5X114.3 |
12mmX1.25 |
66.1 |
20mm |
|
| 300ZX TURBO |
84-89 |
16 X 7 |
5X114.3 |
12mmX1.25 |
66.1 |
20mm |
|
| 300ZX,TURBO |
84-89 |
15 X 6.5 |
5X114.3 |
12mmX1.25 |
66.1 |
20mm |
|
| AXXESS |
90-on |
14 X 5.5 |
4X114.3 |
12mmX1.25 |
66.1 |
35-45mm |
|
| XTERRA |
2000-on |
16 X 7 |
6X139.7 |
12mmX1.25 |
- |
20mm |
|
| FRONTIER |
98- |
15X6 |
6X139.7 |
12mmX1.25 |
- |
0mm/20mm |
|
| PATHFINDER 2WD & 4WD |
87-96 |
15 X 6 |
6X139.7 |
12mmX1.25 |
- |
0mm/20mm |
|
| PATHFINDER 2WD & 4WD |
96-97 |
16 X 7 |
6X139.7 |
12mmX1.25 |
- |
20mm |
|
| PICKUP 2WD/4WD |
73-86 |
14 X 6 |
6X139.7 |
12mmX1.25 |
- |
0mm/20mm |
|
| QUEST |
93-on |
15 X 6 |
5X114.3 |
12mmX1.25 |
66.1 |
35-45mm |
|
| 2WD PICKUP |
87-96 |
15 X 6 |
6X139.7 |
12mmX1.25 |
- |
0mm/20mm |
|
| 4WD PICKUP |
87-96 |
15 X 6 |
6X139.7 |
12mmX1.25 |
- |
0mm/20mm |
|
| OLDSMOBILE |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| ACHIEVA |
92-on |
15 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| ACHIEVA S,SL |
92-97 |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| ACHIEVA SC |
92-97 |
16 X 7 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| ALERO |
98-on |
16 X 7 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| AURORA |
94-on |
16 X 7 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| CALAIS |
88-90 |
13 X 5.5 |
5X100 |
12mmX1.5 |
70.3 |
35-45mm |
|
| CIERA,CUTLASS |
82-91 |
14 X 5.5 |
5X100 |
12mmX1.5 |
70.3 |
35-45mm |
|
| CIERA H.D.,CRUSIER (FWD) |
83-96 |
14 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| CUTLASS,CALAIS,CIERA |
82-91 |
14 X 5.5 |
5X100 |
12mmX1.5 |
70.3 |
35-45mm |
|
| CUTLASS SUPREME (FWD) |
88-91 |
14 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| CUTLASS SUPREME (FWD) |
88-97 |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| CUTLASS SUPREME (FWD) |
89-97 |
16 X 6.5 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| ALL MID-SIZE RWD (CUTLASS,F85,442,ETC.) |
65-87 |
14",15" |
5X120.7 |
12mmX1.5 |
- |
0mm |
|
| 88,98 DELTA,REGENCY,ROYALE (FWD) |
85-91 |
14 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| 88,98 DELTA,REGENCY,ROYALE (FWD) |
86-96 |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| 88,98 DELTA,REGENCY,ROYALE (FWD) |
89-96 |
16 X 7 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| ALL FULL SIZE 88,98,RWD (W/O 403 ENG.) |
77-85 |
15 X 6 |
5X120.7 |
7/16-RH |
- |
0mm |
|
| ALL FULL SIZE 88,98,RWD (W/403 ENG.) |
64-92 |
15 X 6 |
5X127.0 |
1/2-RH |
- |
0mm |
|
| INTRIGUE |
97-on |
15X6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| LSS |
97-on |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| FIRENZA |
82-88 |
13 X 5.5 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| FIRENZA |
88-88 |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| OMEGA |
80-85 |
13 X 5.5 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| REGENCY |
97-on |
15X6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| TORONADO |
86-88 |
14 X 5.5 |
5X115 |
12mmX1.5 |
70.1 |
35-45mm |
|
| TORONADO FWD |
79-85 |
15 X 6 |
5X120.7 |
12mmX1.5 |
- |
35-45mm |
|
| TORONADO TROFEO |
86-92 |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| TORONADO TROFEO |
90-92 |
16 X 7 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| BRAVADA |
91-on |
15 X 7 |
5X120.7 |
12mmX1.5 |
- |
35-45mm |
|
| BRAVADA |
02-on |
15 x 7 |
6X127 |
12mmX1.5 |
78.3 |
35-45mm |
|
| SILHOUETTE |
90-on |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| PLYMOUTH |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| ACCLAIM |
89-91 |
15 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| ACCLAIM |
89-95 |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| BREEZE 5 |
96-on |
15 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| CARAVELLE, LE |
85-89 |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| FULL SIZE (BELVEDERE,FURY,SATELLITE,ETC.) |
57-89 |
14",15" |
5X114.3 |
1/2-RH |
- |
0mm |
|
| HORIZON,OMNI |
79-90 |
13 X 5 |
4X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| LASER |
89-94 |
14 X 5.5 |
5X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| LASER RS & RS TURBO,AWD |
89-94 |
16 X 6 |
5X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| MID-SIZE RWD MODELS W/DISC BRAKES |
70-80 |
14 X 5.5 |
5X114.3 |
1/2-RH |
- |
0mm |
|
| NEON 5 |
96-on |
14 X 5.5 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| RELIANT |
81-85 |
13 X 5 |
4X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| RELIANT |
86-89 |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| SUNDANCE |
84-94 |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| VISTA |
85-91 |
13 X 5 |
4X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| VISTA |
85-94 |
14 X 5.5 |
4X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| ARROW P/U |
79-82 |
14 X 6 |
6X139.7 |
12mmX1.5 |
- |
0mm/20mm |
|
| VOYAGER |
81-85 |
13 X 5.5 |
4X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| VOYAGER |
86-96 |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| GRAND VOYAGER |
88-on |
15 X 6 |
5X114.3 |
12mmX1.5 |
71.5 |
35-45mm |
|
| TRAIL DUSTER |
79-82 |
15 X 6 |
5X114.3 |
1/2-RH |
- |
0mm/20mm |
|
| PONTIAC |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| ALL MID SIZE( GRAND PRIX,GTO,LEMANS,ETC.) |
64-87 |
14",15" |
5X120.7 |
12mmX1.5 or 7/16-RH |
- |
0mm |
|
| ALL FULL SIZE RWD (W/O 403 ENG.) |
77-86 |
15 X 6 |
5X120.7 |
7/16-RH |
- |
0mm |
|
| ALL FULL SIZE RWD (W/O 403 ENG.) |
71-90 |
15 X 6 |
5X120.7 |
1/2-RH |
- |
0mm |
|
| AZTEC |
01-ON |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| BONNEVILLE FWD |
87-on |
14 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
|
FIERO |
84-88 |
13 X 5.5 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| FIREBIRD |
82-92 |
14 X 7 |
5X120.7 |
12mmX1.5 |
- |
0mm |
|
| FIREBIRD |
93-on |
16 X 7.5 |
5X120.7 |
12mmX1.5 |
70.3 |
35-45mm |
|
| FIREBIRD,TRANS AM |
67-92 |
14,15 |
5X120.7 |
7/16-RH |
- |
0mm |
|
| GRAND AM |
85-98 |
13 X 5.5 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| GRAND AM |
99- |
16X6.5 |
5x115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| GRAND PRIX |
88-92 |
14 X 5.5 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| GRAND PRIX |
88-on |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| GRAND PRIX, GTP |
89-97 |
16 X 6.5 |
5X115 |
12mmX1.5 |
70.3 |
20mm |
|
| GRAND PRIX |
99-on |
16X6.5 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| J-2000,6000 |
82-84 |
13 X 5 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| LE MANS |
88-93 |
13 X 5.5 |
4X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| MONTANA |
99-on |
15 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| PHOENIX |
80-85 |
13 X 5.5 |
5X120.7 |
12mmX1.5 |
- |
0mm |
|
| PHOENIX |
83-84 |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| SUNBIRD |
85-89 |
13 X 5.5 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| SUNBIRD |
85-94 |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| SUNFIRE |
95-97 |
14 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| SUNFIRE |
95-on |
15 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| SUNFIRE |
95-97 |
16 X 6 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| TRANS AM |
84-92 |
16 X 8 |
5X120.7 |
12mmX1.5 |
57.1 |
0mm |
|
| TRANS AM |
93-97 |
16 X 8 |
5X120.7 |
12mmX1.5 |
57.1 |
35-45mm |
|
| TRANS SPORT |
90-97 |
15X6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| TRANS SPORT |
90-91 |
14X5.5 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| 6000 |
82-89 |
14 X 5.5 |
5X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| 6000 |
83-91 |
14 X 6 |
5X115 |
12mmX1.5 |
70.3 |
35-45mm |
|
| SATURN |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| L SERIES |
99-on |
15 X 6 |
5x110 |
12mmX1.5 |
65.1 |
35-45mm |
|
| S SERIES |
91-on |
14 X 6 |
4X100 |
12mmX1.5 |
57.1 |
35-45mm |
|
| VUE |
02-on |
15 X 6 |
5x115 |
12mmX1.5 |
65.1 |
35-45mm |
|
| SUZUKI |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| ESTEEM |
95-97 |
13 X 5.5 |
4X100 |
12mmX1.25 |
- |
35-45mm |
|
| SWIFT |
89-96 |
13 X 4.5 |
4X114.3 |
12mmX1.25 |
60.1 |
35-45mm |
|
| SWIFT |
89-97 |
14 X 5 |
4X114.3 |
12mmX1.25 |
60.1 |
35-45mm |
|
| SAMURAI |
86-93 |
15 X 6 |
5X139.7 |
12mmX1.25 |
- |
0mm/20mm |
|
| SIDEKICK |
89-96 |
15 X 6 |
5X139.7 |
12mmX1.25 |
- |
0mm/20mm |
|
| SIDEKICK |
96-97 |
16 X 7 |
5X139.7 |
12mmX1.5 |
- |
20mm |
|
| X-90 |
96-98 |
15 X 6.5 |
5X139.7 |
12mmX1.25 |
-- |
0mm/20mm |
|
| XL-7 |
01-on |
16 X 7 |
5X139.7 |
12mmX1.5 |
- |
|
| VIATARA 5 |
98-ON |
16 X 7 |
5X139.7 |
12mmX1.5 |
- |
0mm |
|
| GRAND VITARA |
99-on |
16 X 7 |
5X139.7 |
12mmX1.5 |
- |
|
| TOYOTA |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| AVALON |
95-97 |
15 X 6 |
5X114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
| CAMRY |
83-91 |
13 X 5 |
5X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
| CAMRY |
92-on |
14 X 6 |
5X114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
| CAMRY SOLARA |
99-on |
16 X 6 |
5X114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
| CELICA |
76-85 |
14 X 6 |
4X114.3 |
12mmX1.5 |
60.1 |
20mm |
|
| CELICA |
86-91 |
13 X 5.5 |
4X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
|
| CELICA |
86-96 |
14 X 6 |
5X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
|
| CELICA |
90-96 |
15 X 6 |
5X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
|
| CELICA |
2000-on |
15 X 6 |
5X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
|
| COROLLA |
88-96 |
13 X 5 |
4X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
| COROLLA |
88-97 |
14 X 5.5 |
4X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
| CRESSIDA |
85-88 |
15 X 6 |
4X114.3 |
12mmX1.5 |
60.1 |
20mm |
|
| CRESSIDA |
89-92 |
15 X 6 |
5X114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
| ECHO |
00-on |
13 X 4.5 |
4X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
| MR-2 |
85-89 |
14 X 6 |
4X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
| MR-2 |
90-92 |
14 X 6 |
5X114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
| MR-2 |
92-95 |
15 X 7 |
5X114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
| MR-2 SPYDER |
00-on |
- |
4X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
| PASEO |
92-96 |
14 X 5.5 |
4X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
| PRIUS |
01-on |
|
4X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
| SUPRA |
79-82 |
14 X 6 |
4X114.3 |
12mmX1.5 |
60.1 |
20mm |
|
| SUPRA |
93-96 |
16 X 8 |
5X114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
| SUPRA |
93-96 |
17 X 8,F |
5X114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
| SUPRA |
93-96 |
17 X 9,5,R |
5X114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
| SUPRA L |
83-85 |
15 X 6 |
4X114.3 |
12mmX1.5 |
60.1 |
20mm |
|
| SUPRA,TURBO |
86-93 |
16 X 7 |
5X114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
| TERCEL |
83-97 |
13 X 4.5 |
4X100 |
12mmX1.5 |
54.1 |
35-45mm |
|
| PICKUP 2WD |
80-95 |
14 X 6 |
5X114.3 |
12mmX1.5 |
- |
0mm/20mm |
|
| PICKUP 4WD, 4 RUNNER |
80-95 |
15 X 7 |
6X139.7 |
12mmX1.5 |
- |
0mm/20mm |
|
| 4-RUNNER |
96-97 |
16 X 7 |
6X139.7 |
12mmX1.5 |
- |
20mm |
|
| 4WD PICKUP |
86-95 |
15 X 6 |
6X139.7 |
12mmX1.5 |
- |
0mm/20mm |
|
| HIGHLANDER |
01-on |
|
5X114.3 |
12mmX1.5 |
60.1 |
20mm |
|
| LANDCRUISER |
69-92 |
15 X 6 |
6X139.7 |
12mmX1.5 |
- |
0mm/20mm |
|
| LANDCRUISER |
93-97 |
16 X 8 |
6X139.7 |
12mmX1.5 |
- |
20mm |
|
| LANDCRUISER |
98-on |
16 X 8 |
5X150 |
14mmX1.5 |
110 |
35-45mm |
|
| PREVIA |
90-94 |
14 X 6 |
5X114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
| PREVIA |
91-96 |
15 X 6 |
5X114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
| RAV4 |
96-97 |
16 X 7 |
5X114.3 |
12mmX1.5 |
67.1 |
35-45mm |
|
| RAV4 |
00-on |
16 X 7 |
5X114.3 |
12mmX1.5 |
67.1 |
- |
|
| SEQUOIA |
01-on |
16 X 7 |
6X139.7 |
12mmX1.5 |
108 |
20mm |
|
| SIENNA |
97- |
15 X 6 |
5X114.3 |
12mmX1.5 |
60.1 |
35-45mm |
|
| T-100 |
93-96 |
15 X 6 |
6X139.7 |
12mmX1.5 |
108 |
20mm |
|
| TACOMA 2WD |
95-97 |
14 X 5.5 |
5X114.3 |
12mmX1.5 |
67.1 |
20mm/35-45mm |
|
| TACOMA 4WD |
95-97 |
15 X 7 |
6X139.7 |
12mmX1.5 |
108 |
20mm |
|
| TUNDRA |
99-on |
16 X 7 |
6X139.7 |
12mmX1.5 |
108 |
20mm |
|
| VAN WAGON 2WD |
84-90 |
14 X 5.5 |
4X114.3 |
12mmX1.5 |
- |
20mm |
|
| VOLKSWAGEN |
YEAR |
OE SIZE |
BOLT |
LUG/NUT |
CENTER BORE |
ET |
|
| BEETLE NEW |
98- |
16x7 |
5X100 |
14mmX1.5b |
57.1 |
35-45mm |
|
| CABRIO |
97-on |
14 X 6 |
4X100 |
12mmX1.5b |
57.1 |
35-45mm |
|
| CORRADO |
89-92 |
15 X 6 |
4X100 |
12mmX1.5b |
57.1 |
35-45mm |
|
| CORRADO V-6 |
93-94 |
15 X 6.5 |
5X100 |
14mmX1.5b |
57.1 |
- |
|
| EUROVAN |
92-on |
15 x 6.5 |
5x112 |
14mmx1.5b |
57.1 |
35-45mm |
|
| GOLF |
85-98 |
14 X 6 |
4X100 |
12mmX1.5b |
57.1 |
35-45mm |
|
| GOLF V-6 |
93-98 |
15 X 6.5 |
5X100 |
14mmX1.5b |
57.1 |
- |
|
| GOLF |
99-on |
15 X 6.5 |
5X100 |
14mmX1.5b |
57.1 |
- |
|
| JETTA |
81-98 |
14 X 6 |
4X100 |
12mmX1.5b |
57.1 |
35-45mm |
|
| JETTA V-6 |
93-98 |
15 X 6.5 |
5X100 |
14mmX1.5b |
57.1 |
35-45mm |
|
| JETTA |
99-on |
15 X 6.5 |
5X100 |
14mmX1.5b |
57.1 |
- |
|
| PASSAT |
90-97 |
14 X 6 |
4X100 |
12mmX1.5b |
57.1 |
35-45mm |
|
| PASSAT V6 |
92-97 |
16X7 |
5X100 |
12mmX1.5b |
57.1 |
35-45mm |
|
| PASSAT |
98-on |
16X7 |
5X112 |
14mmX1.5b |
57.1 |
35-45mm |
|
| QUANTUM |
82-89 |
14 X 6 |
4X100 |
12mmX1.5b |
57.1 |
35-45mm |
|
| SCIROCCO 16 VALVE |
81-88 |
14 X 6 |
4X100 |
12mmX1.5b |
57.1 |
35-45mm |
|
|
|
|
|
How To Measure Wheel Patterns
[Back to Top of Page]
OFFSET EXPLAINED
[Back to Top of Page]
|
